Vintage Zero 88 Lightmaster XL 12-Channel Lighting Console
Säljes
1 500 kr
Frakt från 69 kr + köpskydd 109 kr
Trygga affärer med Frakt med köpskydd
Efter leveransen har du 24 timmar på dig att inspektera varan. Om något är fel med den får du pengarna tillbaka
Skapa ett paket
Köp fler varor från säljaren och betala bara för frakten en gång.
Varubeskrivning
Skick: Bra skick - varsamt använd
Direct Summary
Up for sale is a classic, heavy-duty Zero 88 Lightmaster XL conventional lighting control desk. Built in the UK, this robust memory console is perfect for theater productions, live music venues, DJs, or collectors of vintage stage lighting gear. It offers dual-preset manual control alongside programmable scene memory, multi-format outputs, and built-in sound-to-light effects.
Specifications & Physical Dimensions
Brand: Zero 88 (Made in the U.K.)
Model: Lightmaster XL
Serial Number: 0065000 95170025
Weight: 7.1 kg (approx. 15.6 lbs)
Dimensions: 53.3 cm x 33.0 cm x 10.2 cm (21” x 13” x 4”)

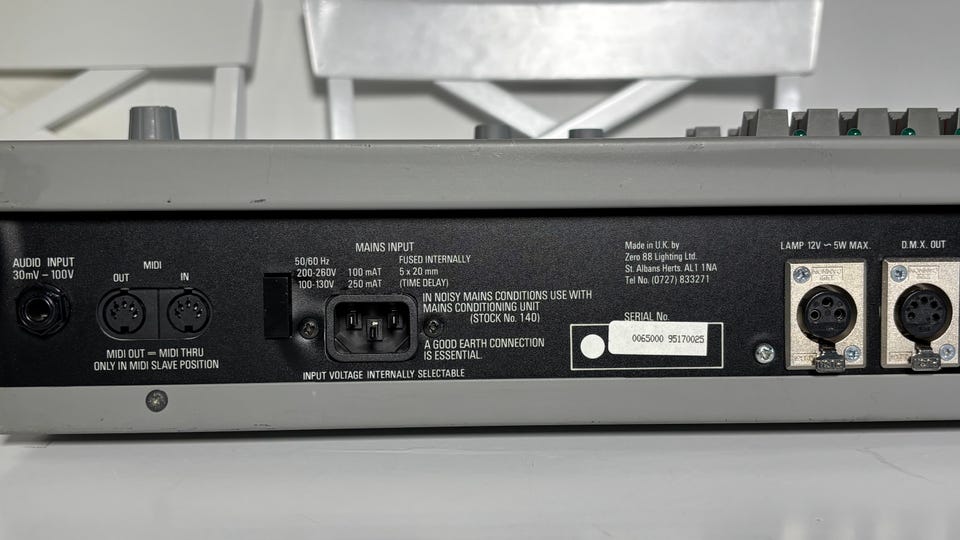

Power Input: Internally selectable 100-130V / 200-260V AC, 50/60Hz (Standard IEC socket)
Key Technical Features

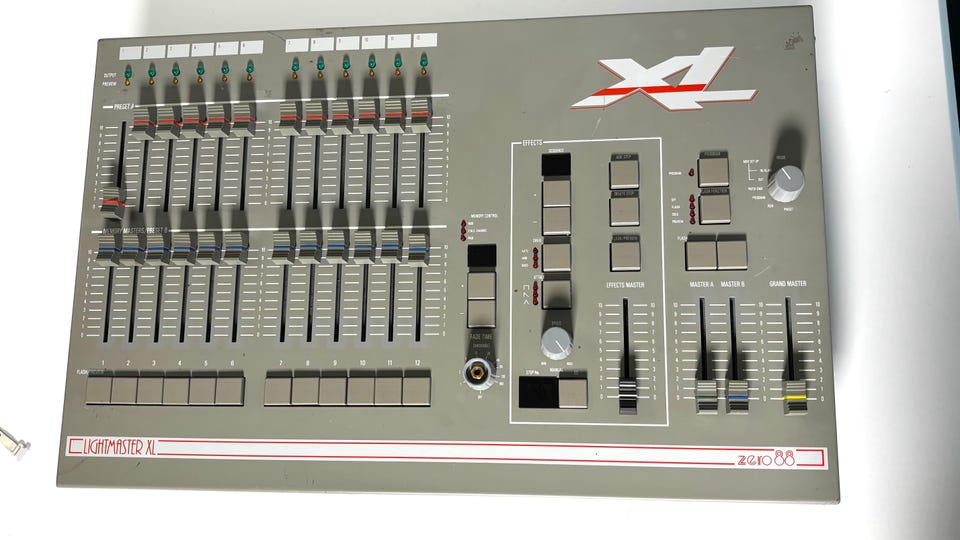

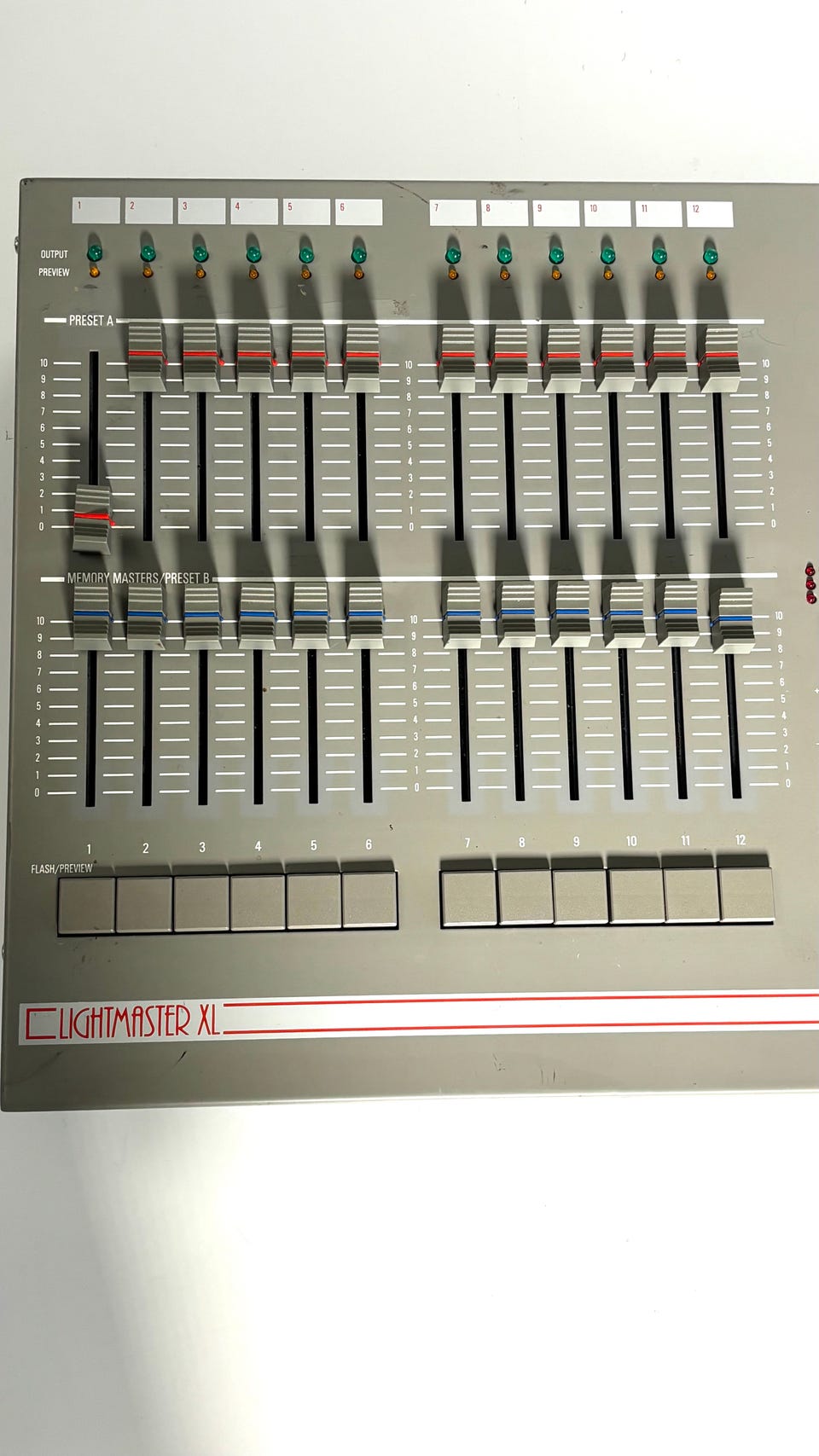

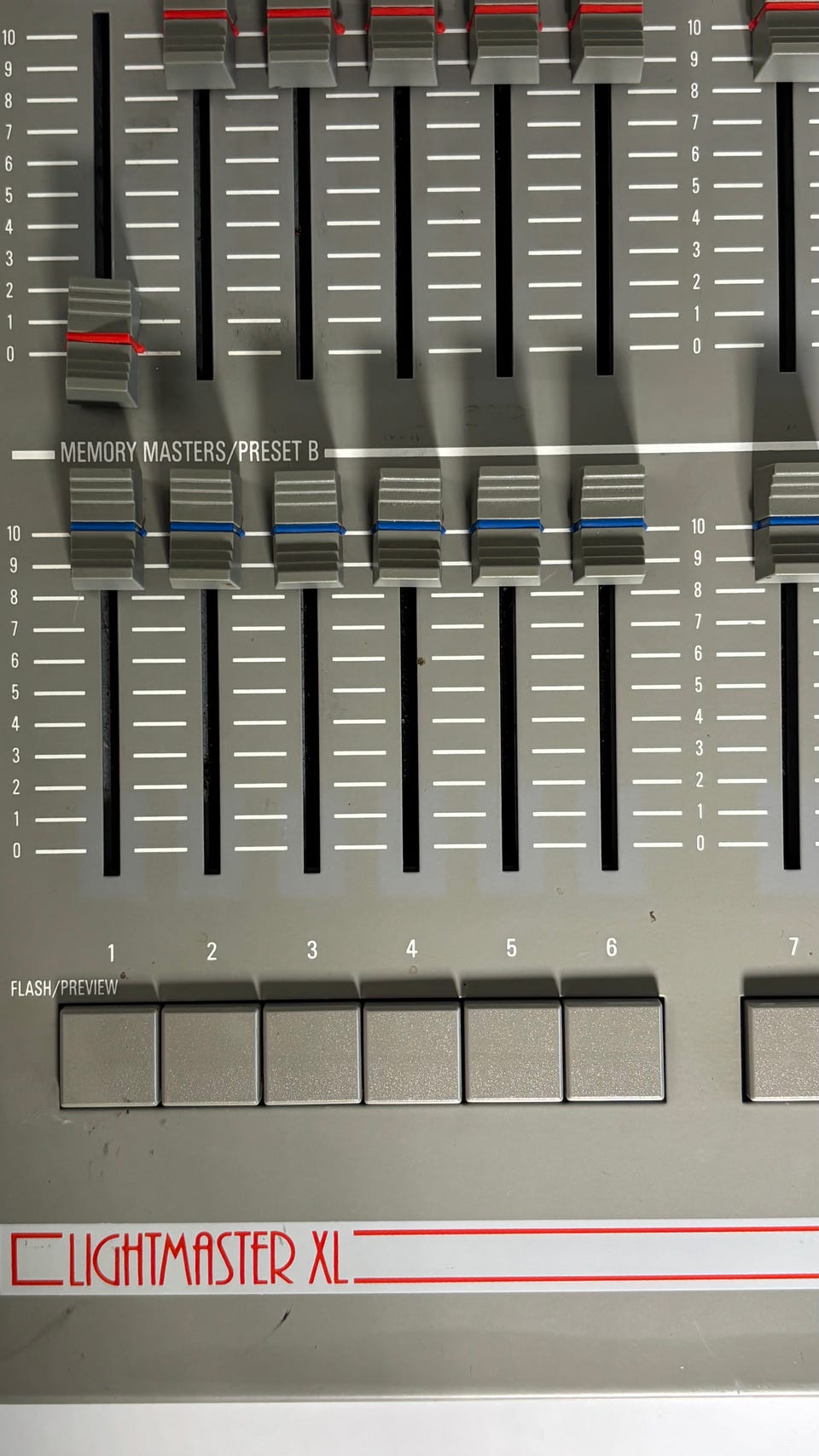

Control Layout: 2-preset layout with 12 manual channel faders (Preset A and Preset B) and physical flash/preview buttons for instantaneous bumps.
Control Outputs: Fully versatile for both old-school and modern setups

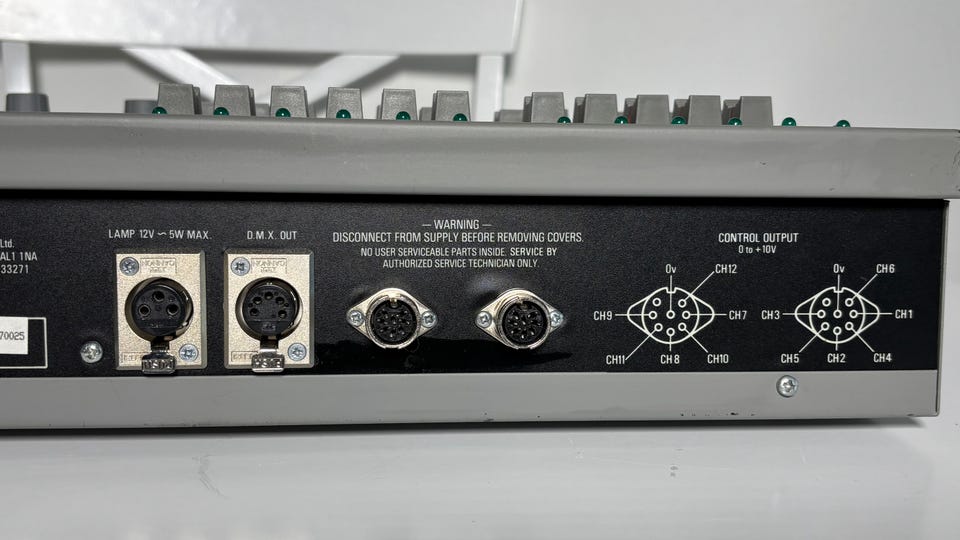

Digital Output: Standard 5-pin D.M.X. OUT

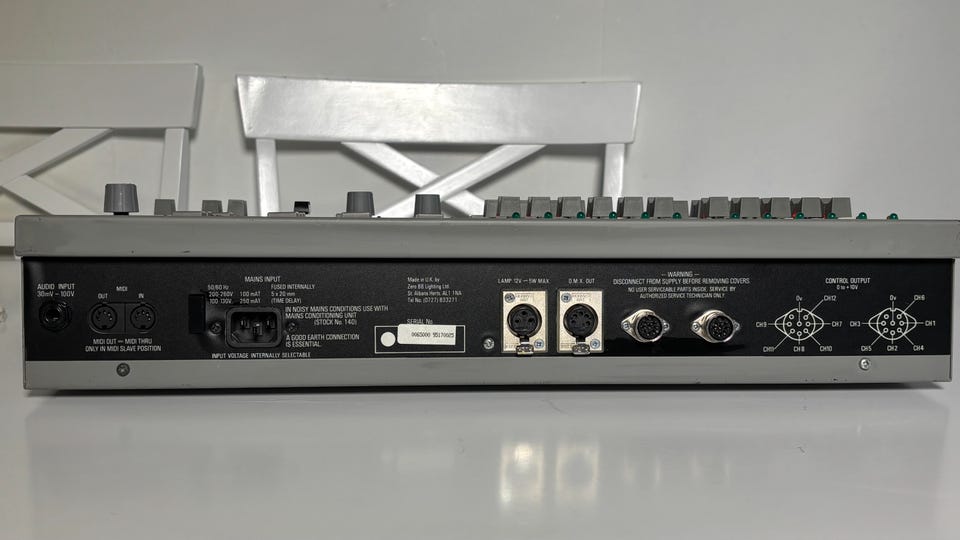

Analog Output: Dual 8-pin DIN sockets providing 0 to +10V control signals (Channels 1–6 and Channels 7–12, pinned with a 0V reference as diagrammed on the rear chassis).

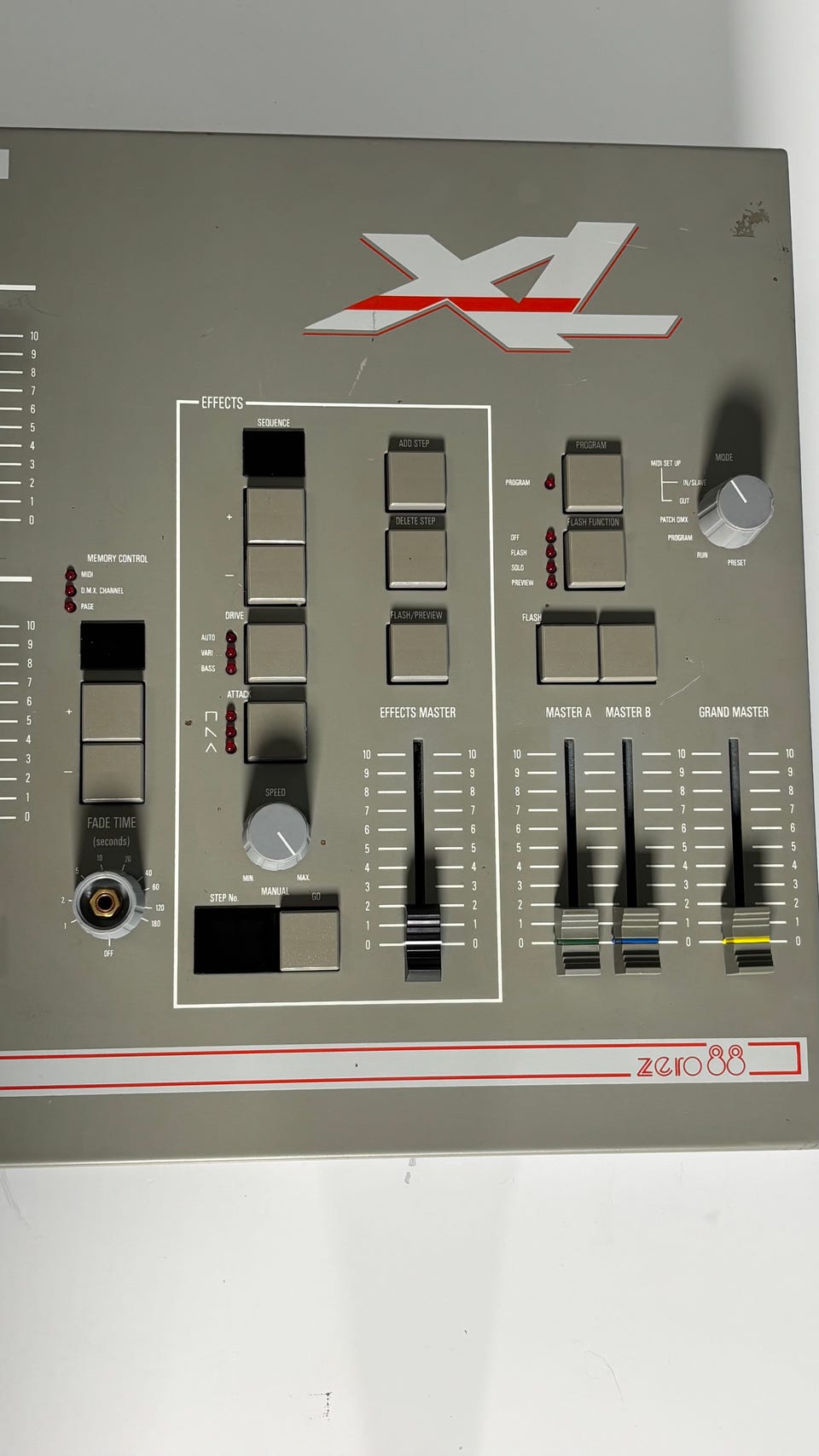

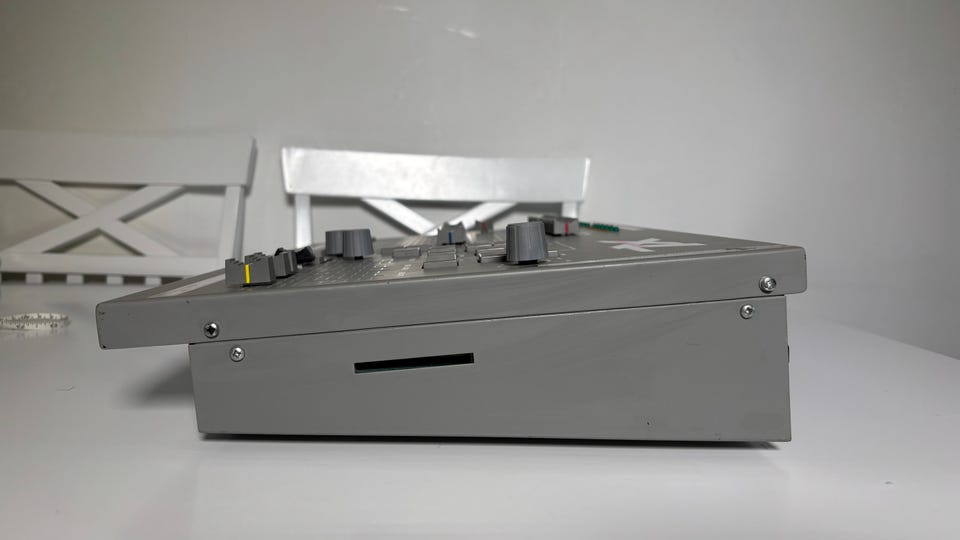

Effects & Memory: Built-in matrix for sound-to-light sequencing (Bass, Vari, Auto attack drives), speed adjustment knob, and a dedicated memory card slot for backup storage.
Audio & MIDI Integration: Equipped with a 1/4” (6.35mm) Audio Input jack (30mV–100V range) for audio syncing, plus 5-pin MIDI In and MIDI Out/Thru connectivity.
Auxiliary Port: Standard 3-pin XLR socket for a 12V (5W max) gooseneck desk lamp.Condition ReportCosmetic
Condition: Very clean overall chassis with crisp lettering, minor superficial wear, and fully legible rear diagram silkscreens.
Hardware Condition: All fader stems are intact and move smoothly. All original encoder caps and slider knobs are present. Rear socket hardware is solid with no loose connections.

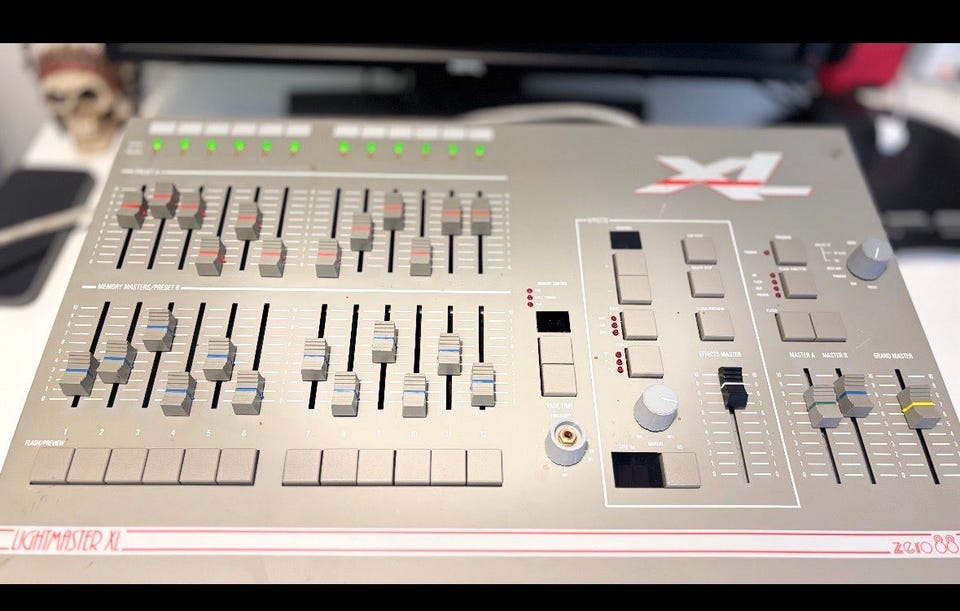

Operational Status: Powers on perfectly (green indicator LEDs illuminate as shown in photos).
