PROXXON - bench drill press TBH + precision machine vice
Säljes
5 500 kr
Frakt från 179 kr + köpskydd 215 kr
Trygga affärer med Frakt med köpskydd
Efter leveransen har du 24 timmar på dig att inspektera varan. Om något är fel med den får du pengarna tillbaka
Skapa ett paket
Köp fler varor från säljaren och betala bara för frakten en gång.
Varubeskrivning
Skick: Nytt skick - helt ny

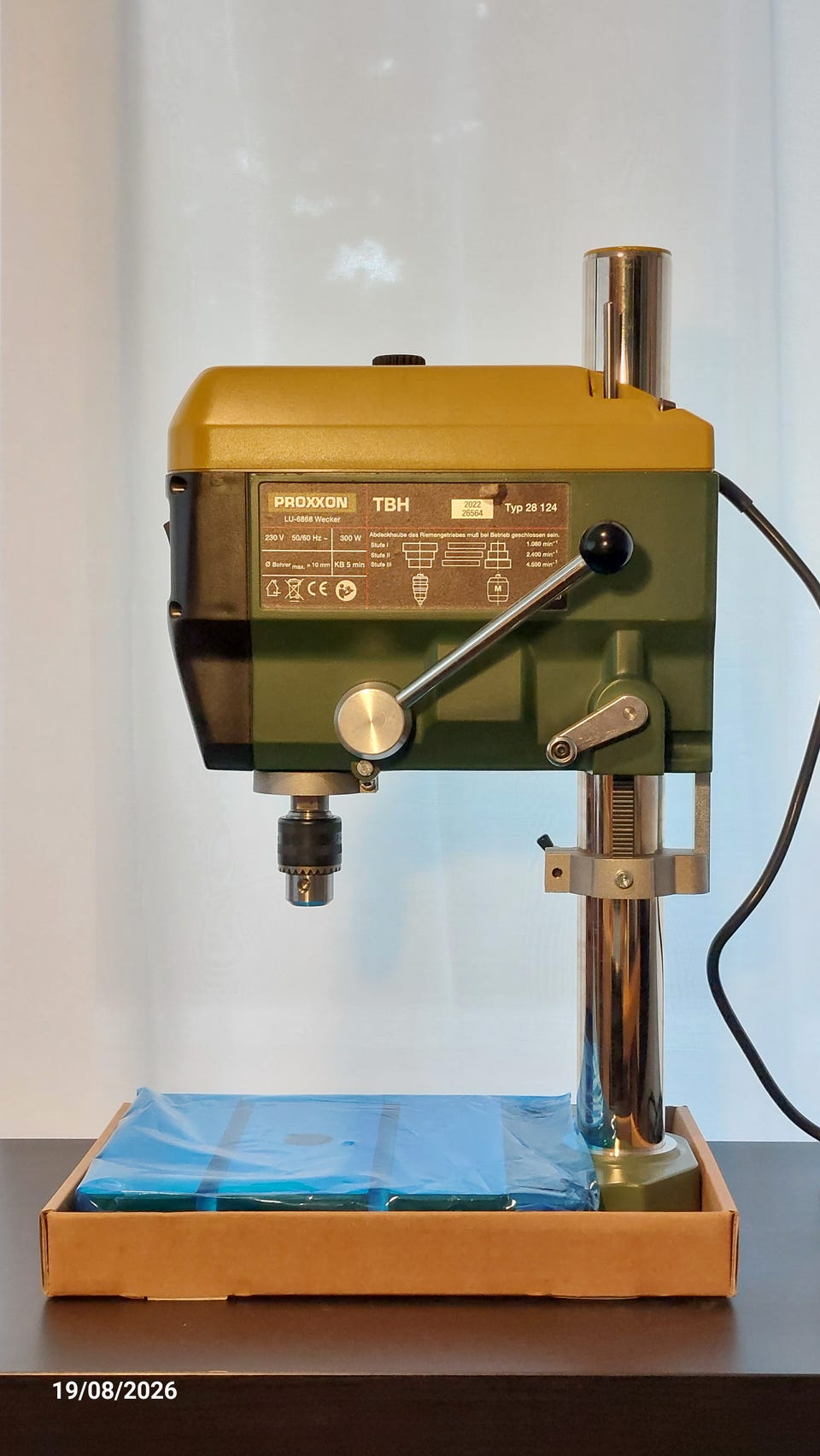

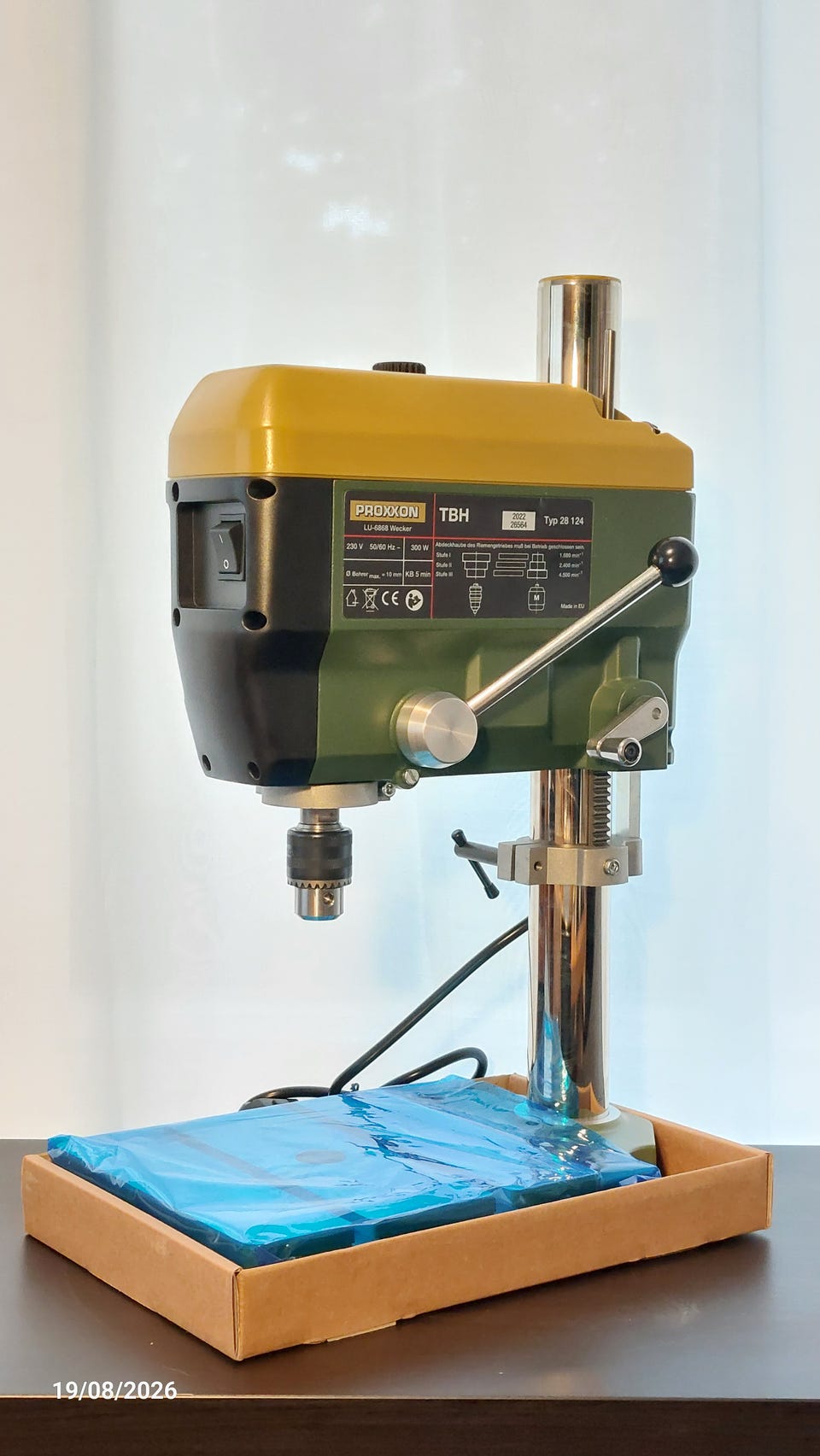

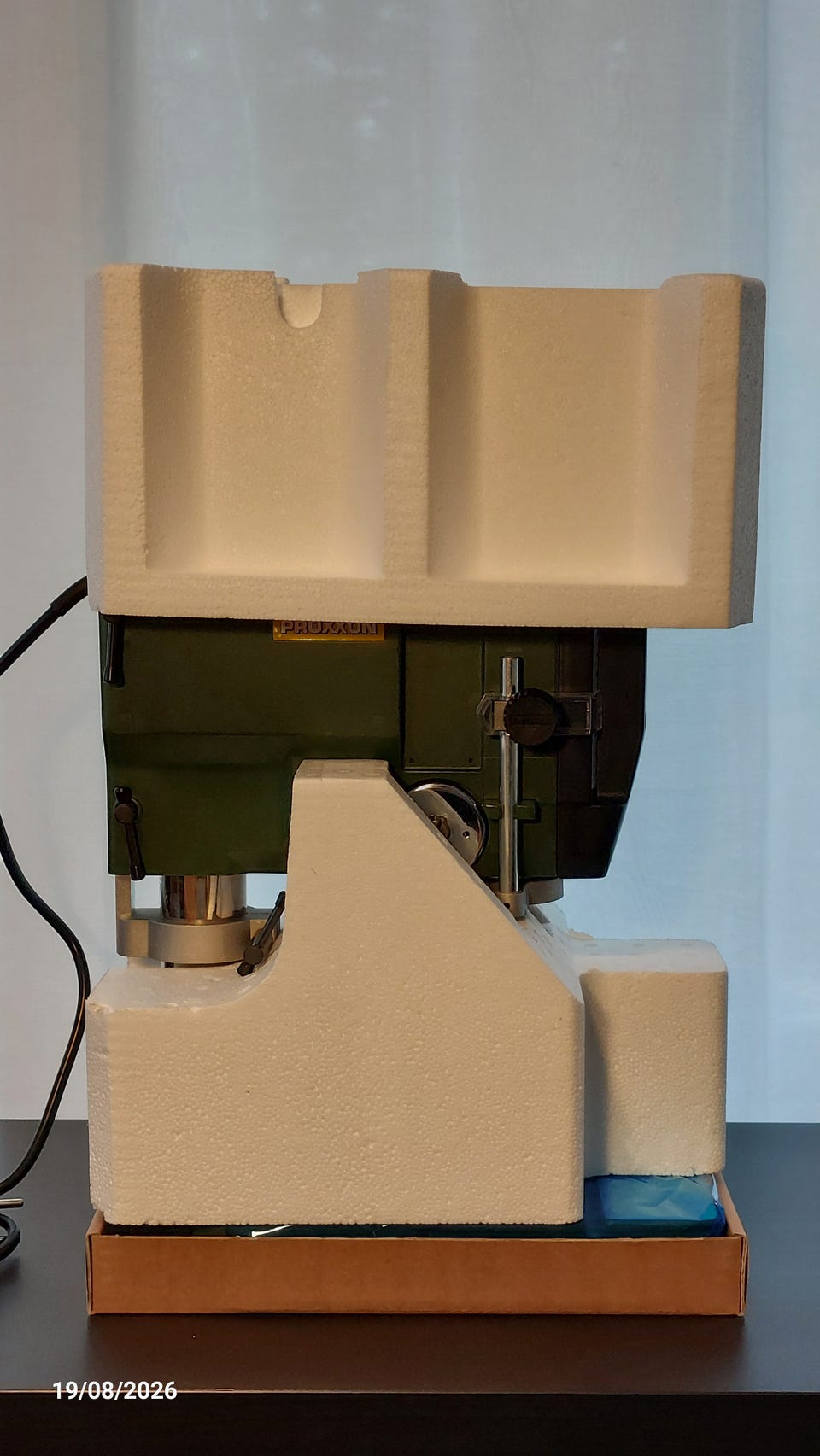

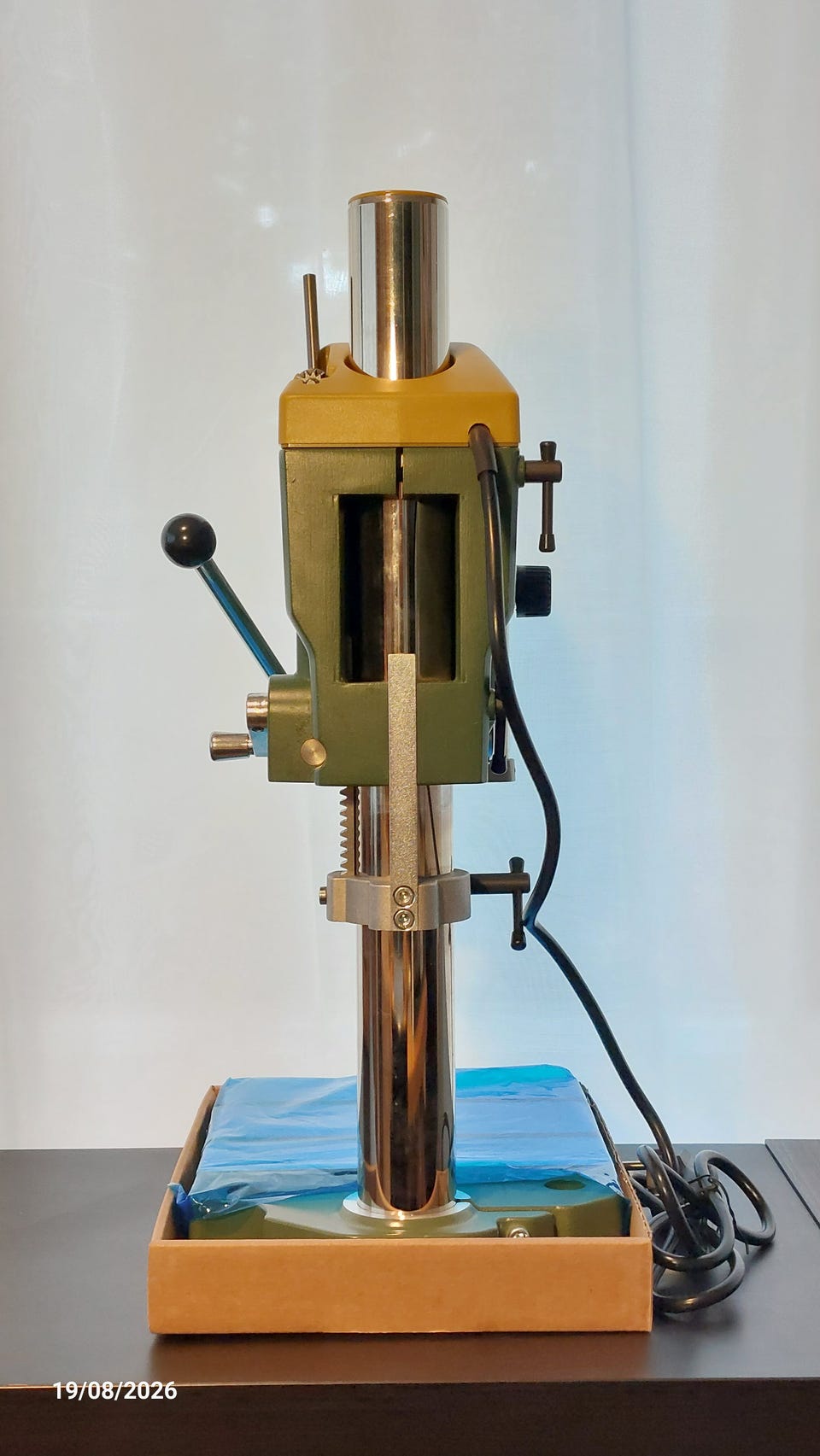

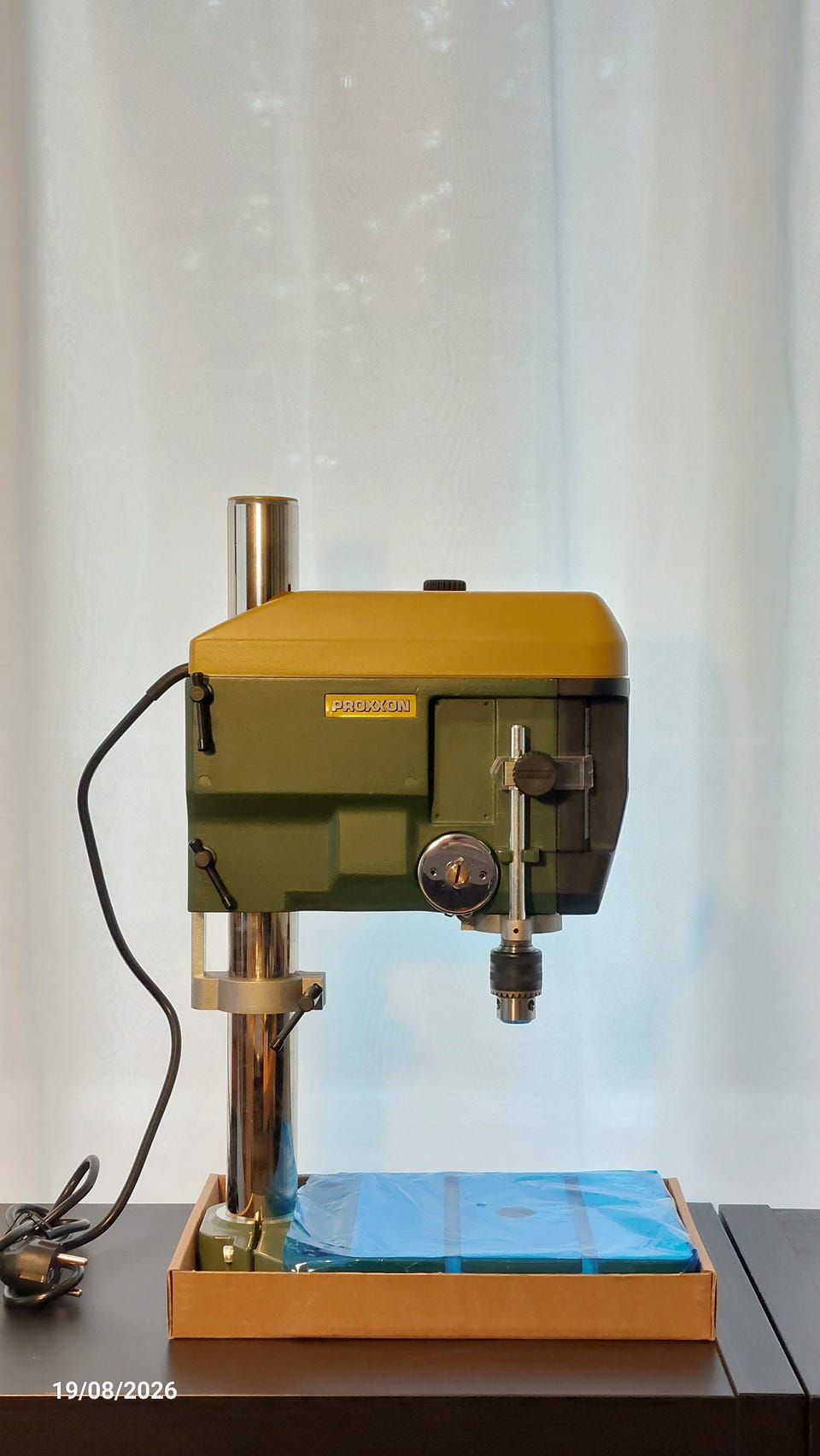

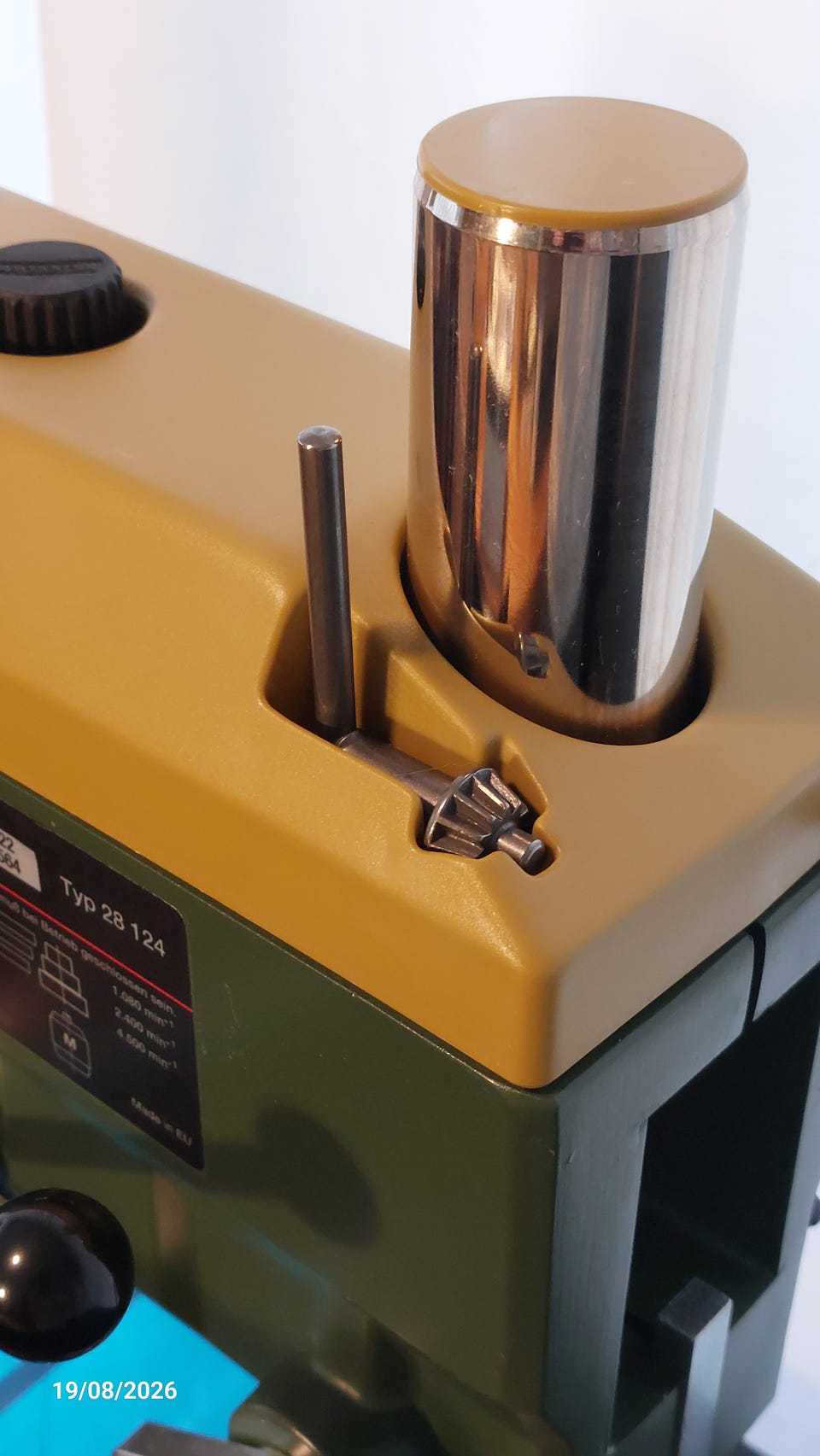

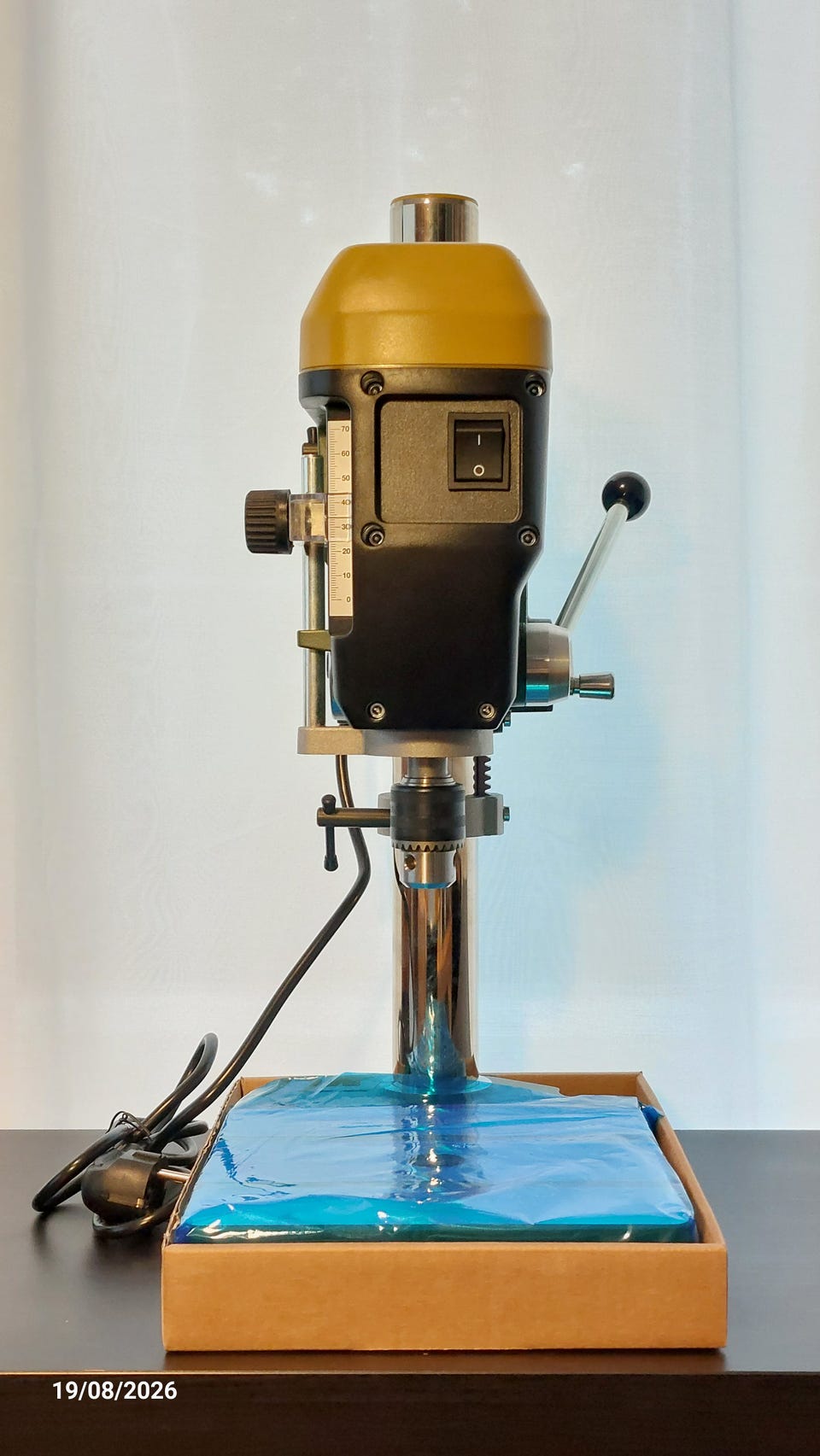

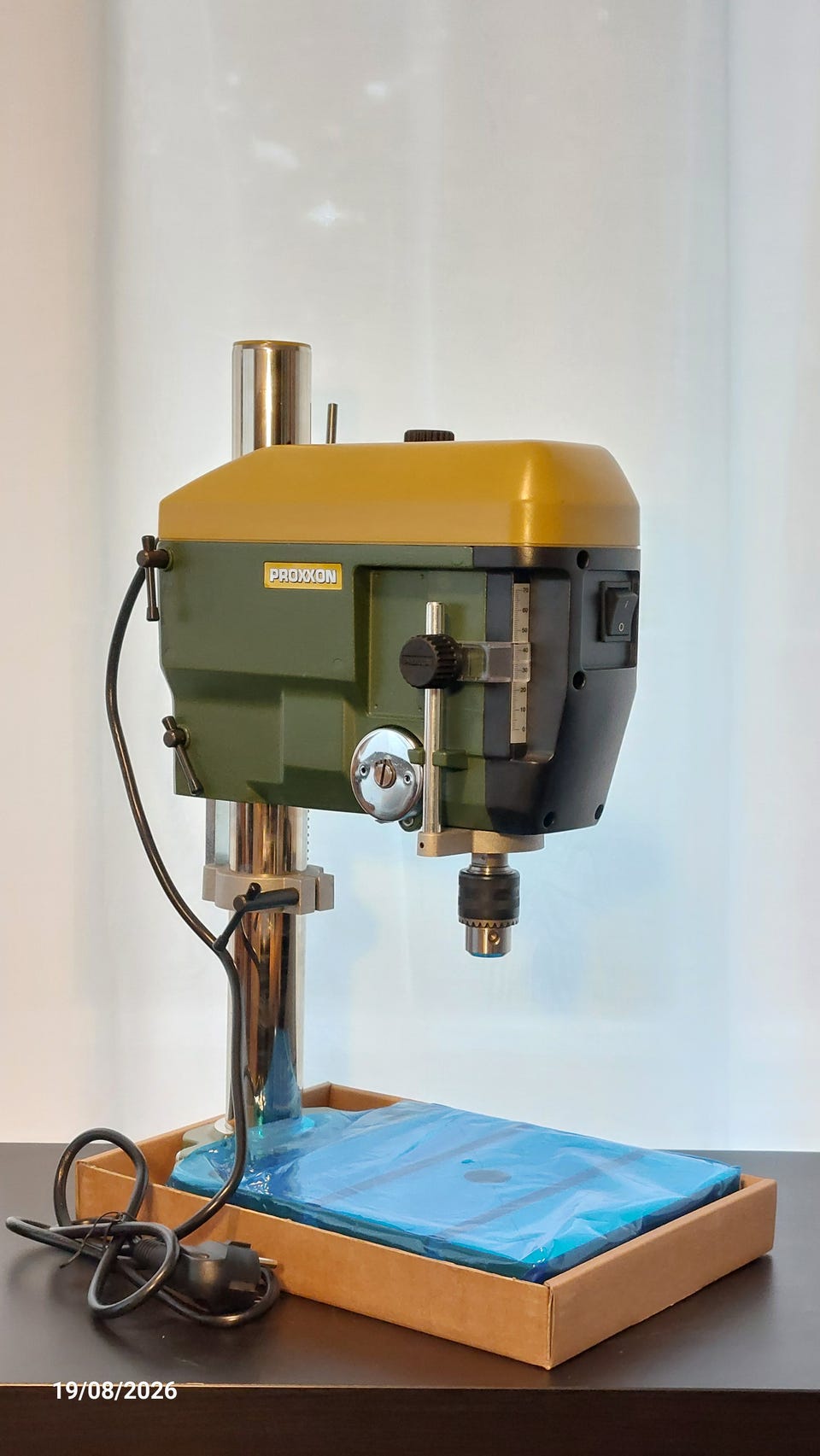

Bench drill press TBH (NO 28 124)

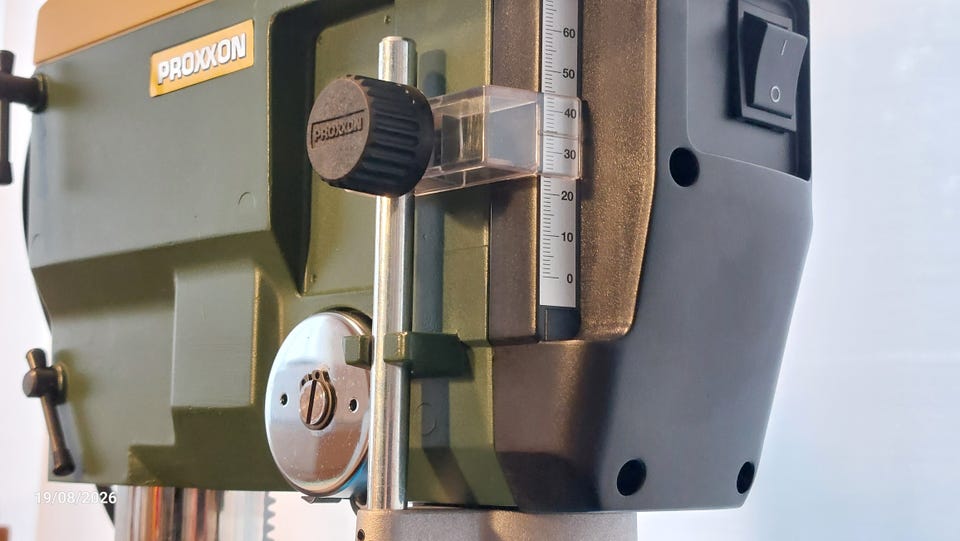

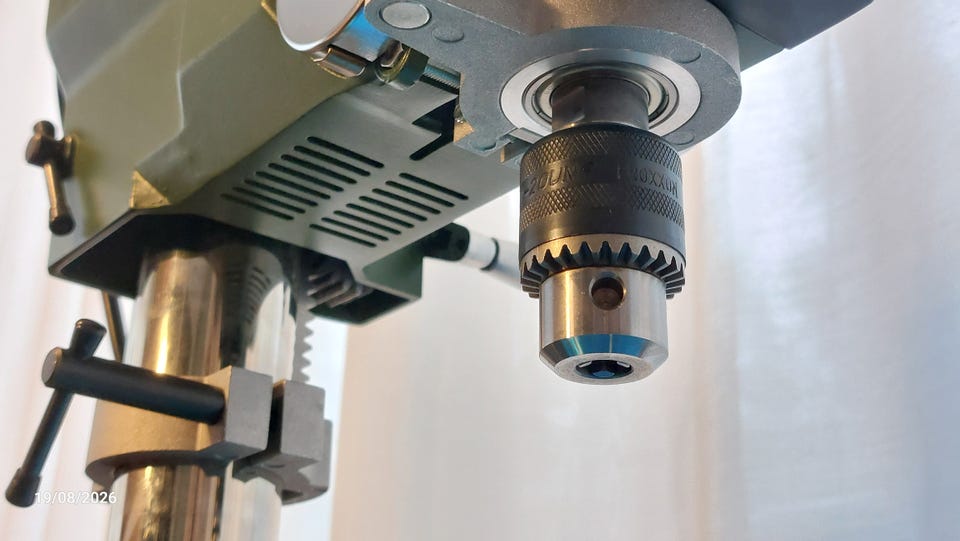

Practical height adjustment via toothed rack with easy to operate crank. Powerful, long-lasting direct current motor. Spindle drive via triple belt pulley with the advantage of roughly 6 times the torque in the lower rotational speed range. Practical drill depth indicator with adjustable limit stop. Drill spindle with precision bearing. Spindle head with 1/2" thread for the corresponding chuck (industrial quality). Spindle with additional fit for steel collets NO 28 200. Practical height adjustment via toothed rack with side crank. Stable, strongly ribbed plane-milled worktable with two T-slots. Practical drill depth indicator with adjustable limit stop.
Note:
Table and arm of the table drilling machine offered here are made of die-cast aluminium. A refined, rust-proof and statically very solid material. Fittings and feeds are machined on our highly modern CNC controlled machines (milled, line-bored, lathed, etc.).

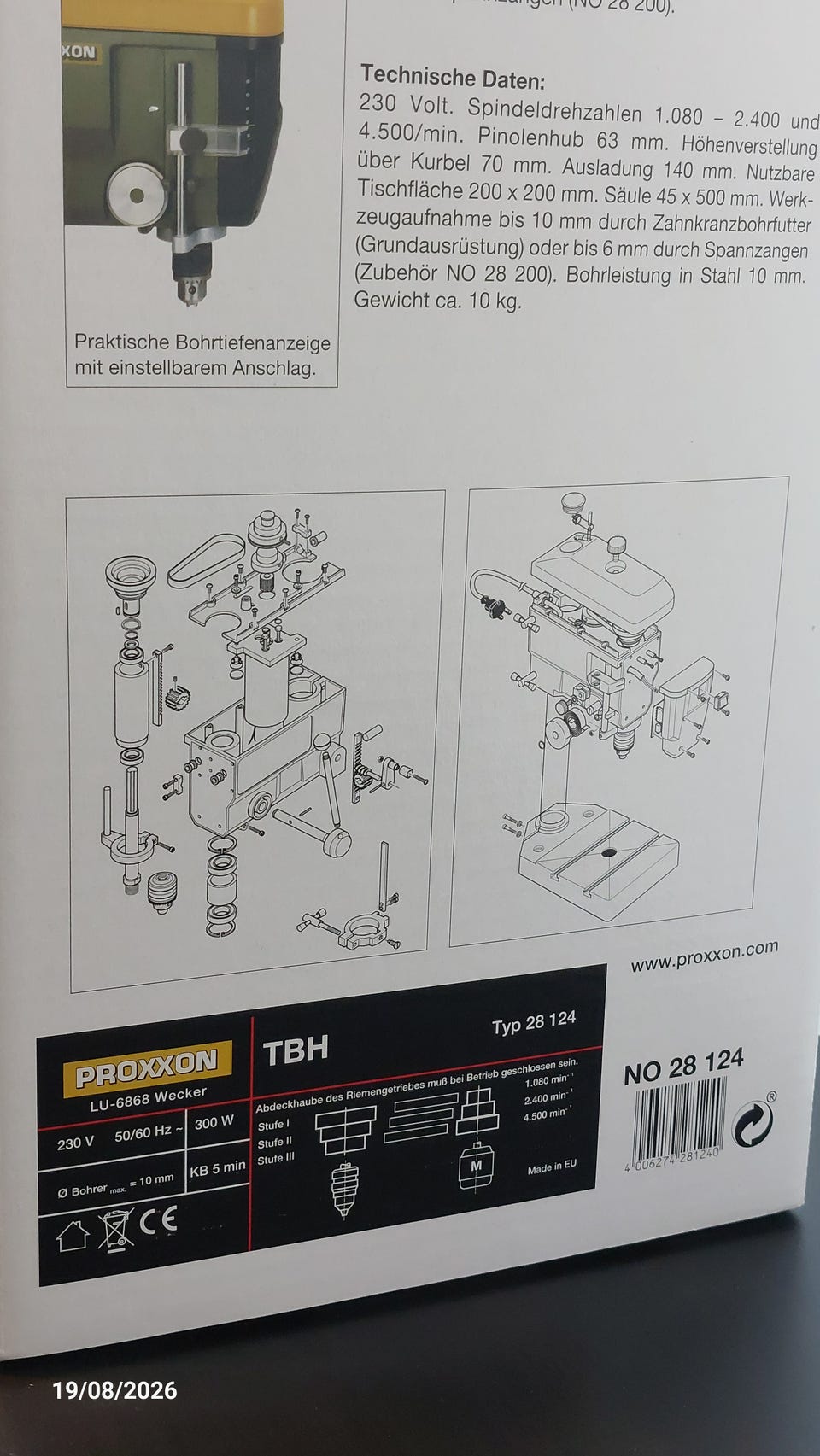

Technical data:

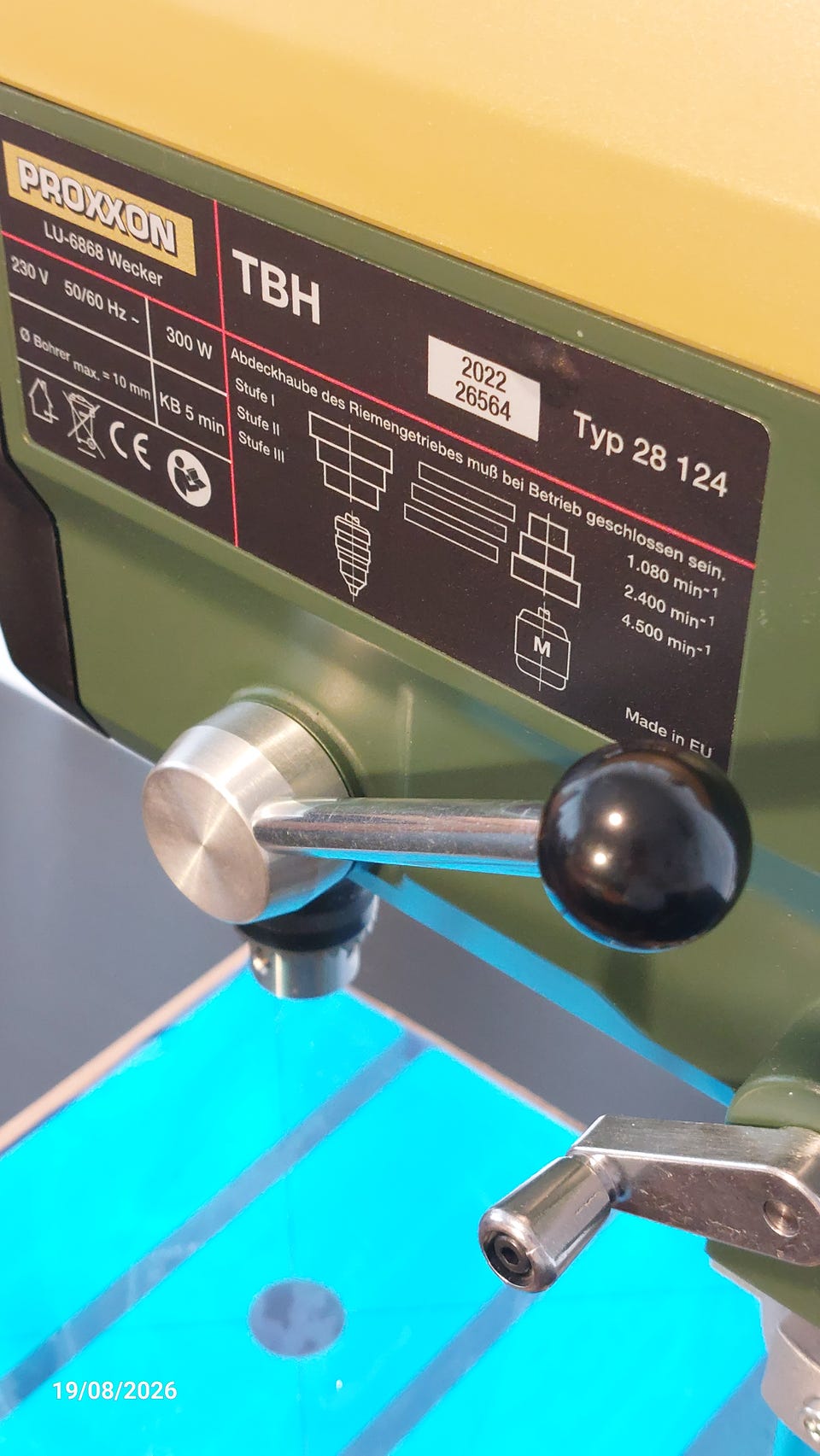

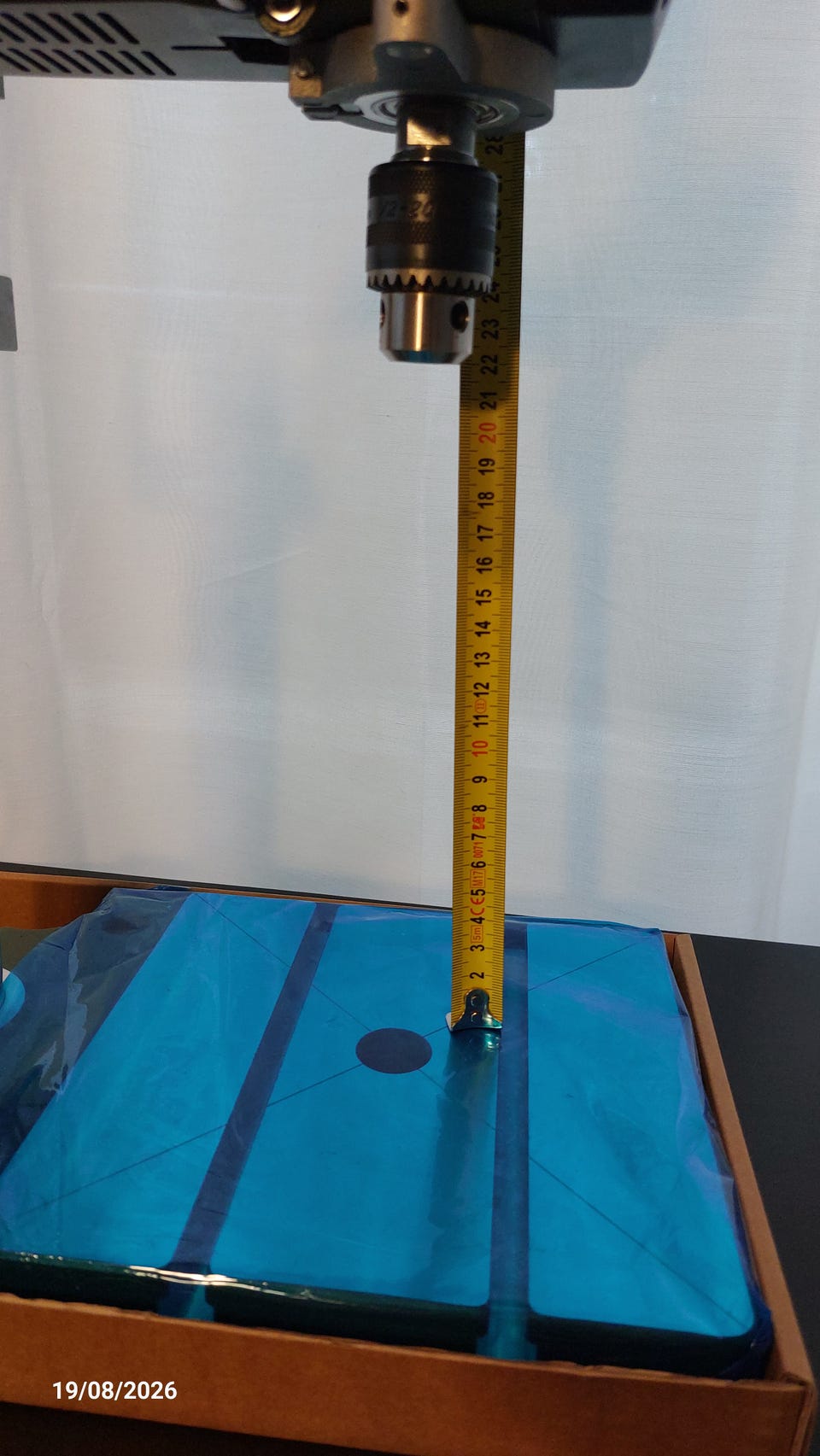

230 Volt. Spindle rotational speeds 1,080 - 2,400 and 4,500rpm. Sliding sleeve stroke 63mm. Height adjustment via crank 70mm. Throat 140mm. Usable table surface 200 x 200mm. Column 45 x 500mm. Tool holder up to 10mm. Drilling performance in steel 10mm. Weight approx. 10kg.

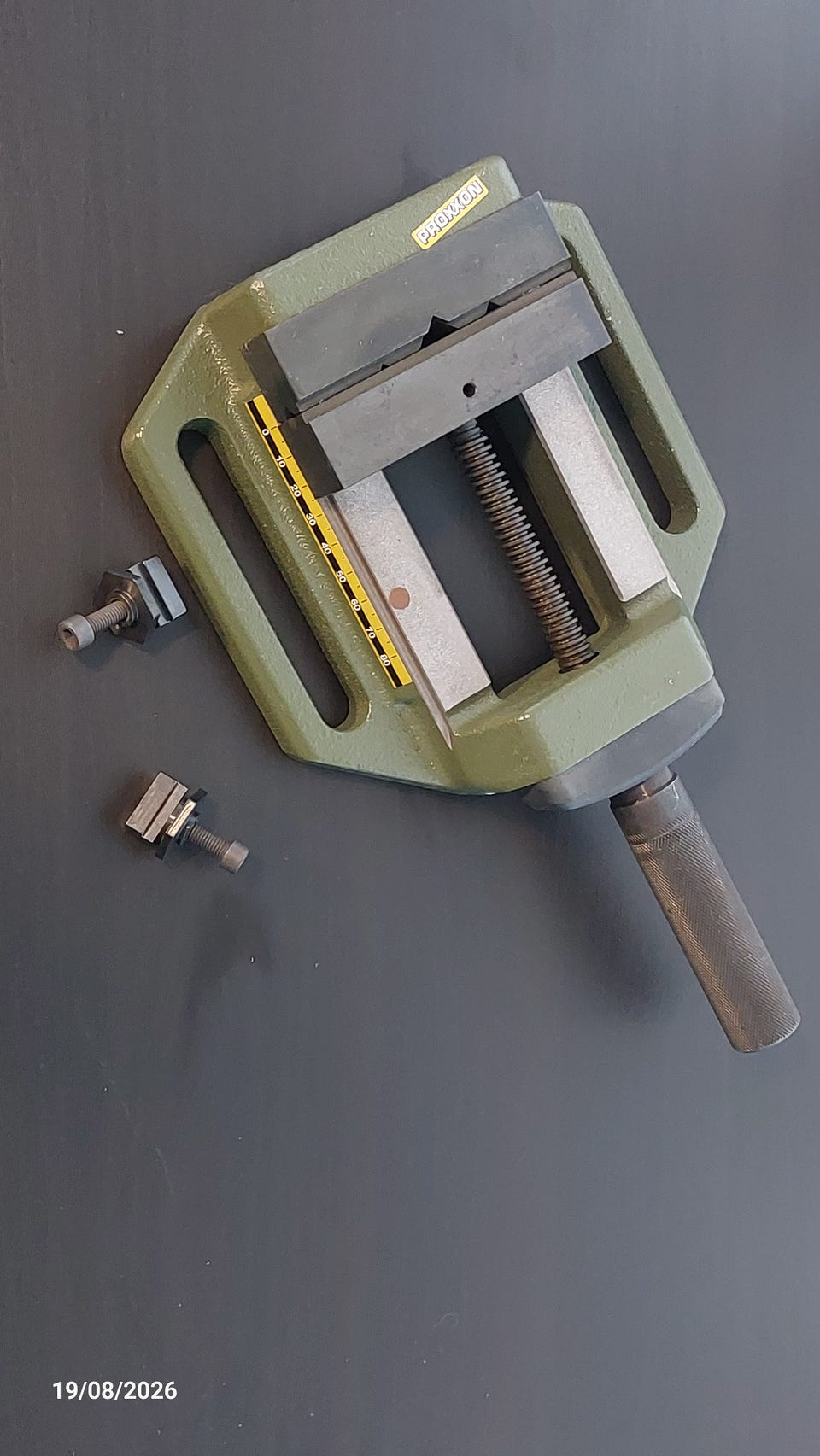

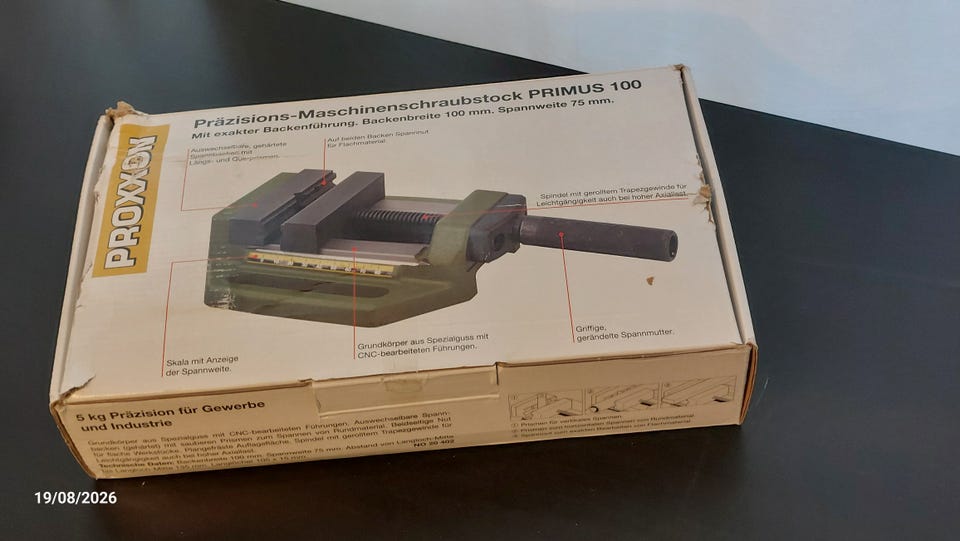

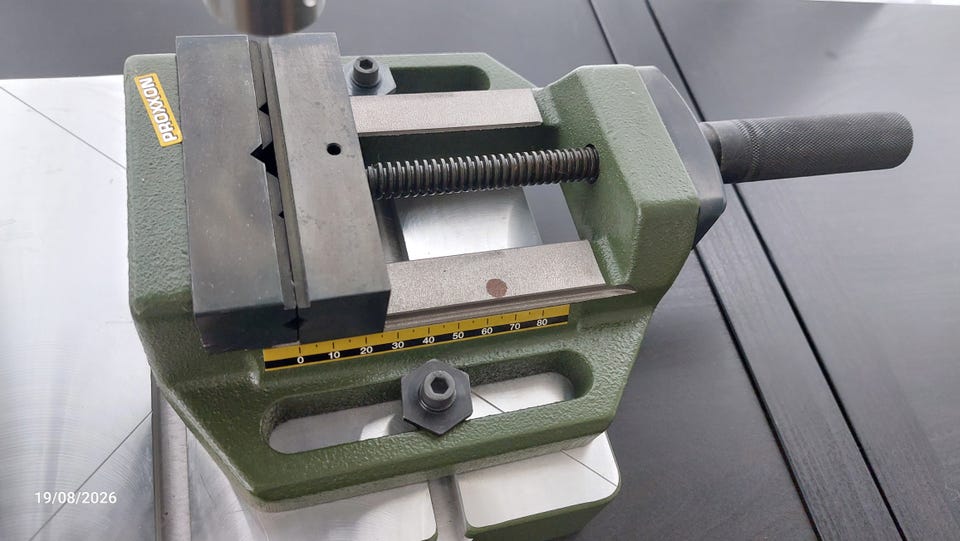

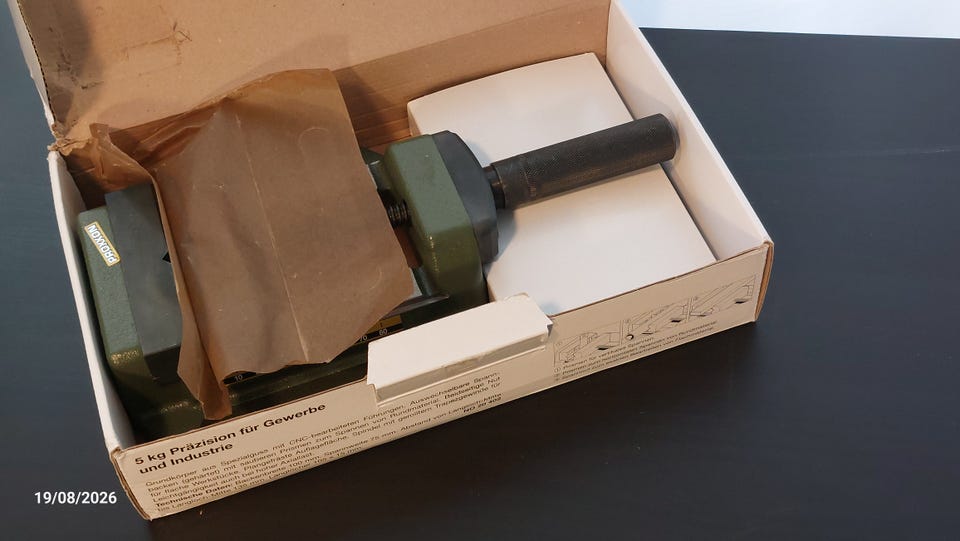

Precision machine vices PRIMUS 100 (NO 20 402)

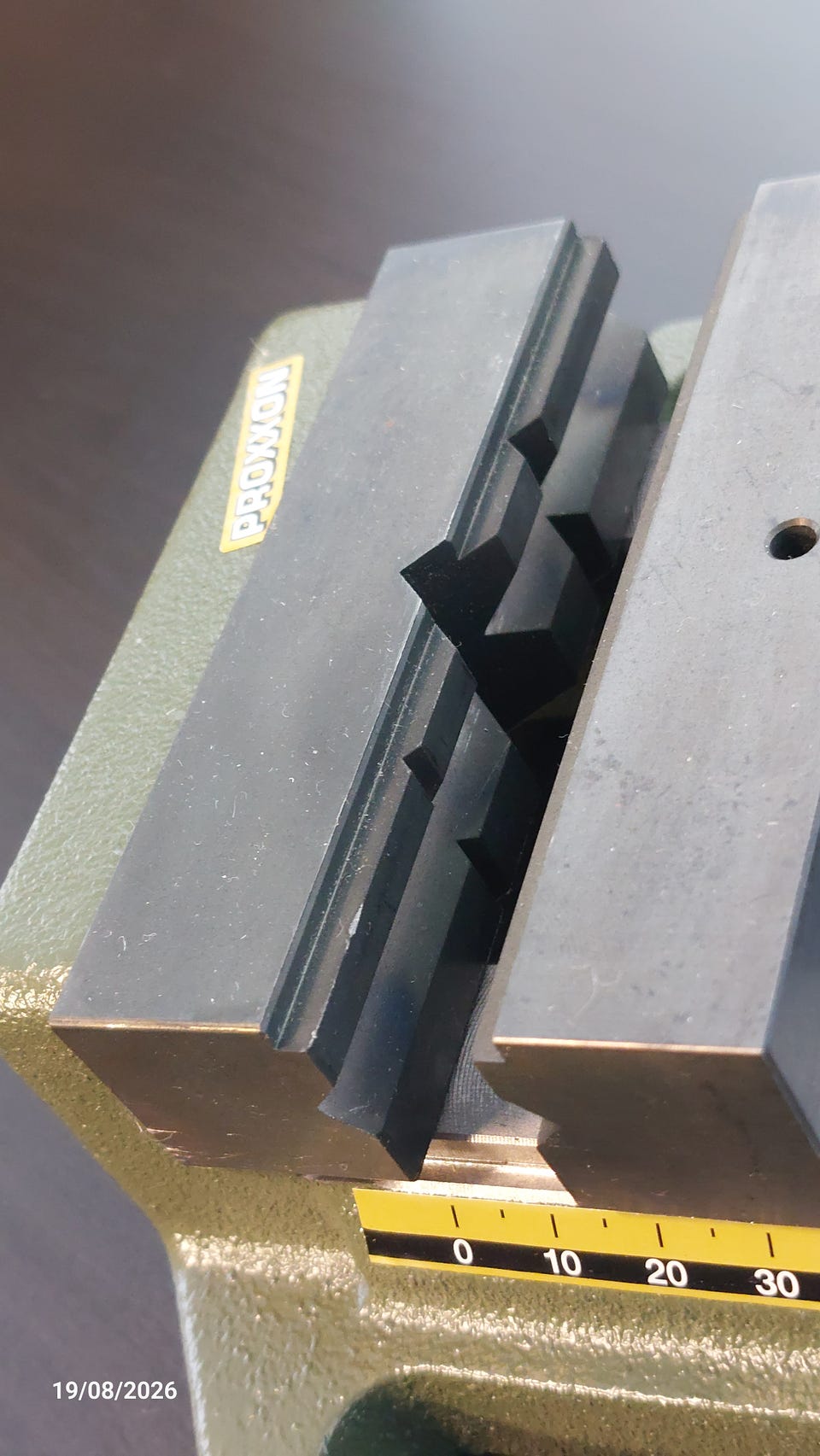

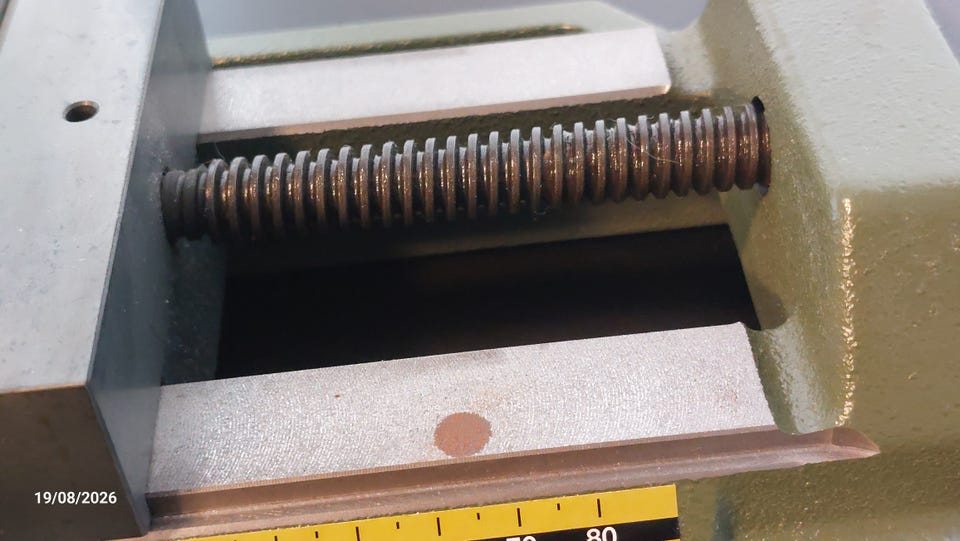

Base body made of special cast iron with CNC-machined guides. Interchangeable gripping jaws. Flat-milled working surface. Spindles with rolled trapezoid thread for ease of operation even during high axial load. Width of jaws 100mm. Jaw opening 75mm. Distance from long slot centre to long slot centre 135mm. Long slots 105 x 15mm. Weight 5.0kg.
COMPLETELY NEW, ASSEMBLED, CHECKED, DISASSEMBLED, PACKED.
