Spektrum DSMX / DSM2 / CM410X / 4-kanals / Mikro Mottagare / PPM / JST
Säljes
Kan skickas
149 kr
Frakt från 39 kr + köpskydd 30 kr
Trygga affärer med Frakt med köpskydd
Varan skickas till dig. Du har 24 timmar på dig att kontrollera varan innan pengarna överförs till säljaren.
Varubeskrivning
Skick: Nytt skick - helt ny

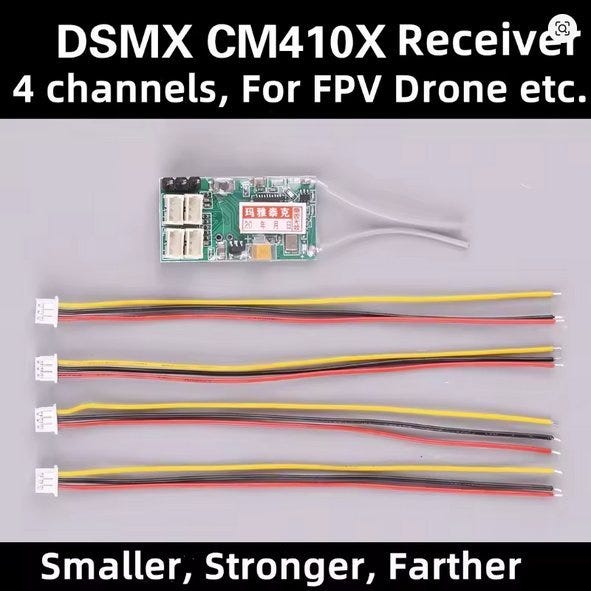

Spektrum DSMX / DSM2 / CM410X / 4-kanals / Mikro Mottagare / PPM / JST
Helt ny oanvänd.
Mer info:
Product Introduction
The CM410X DSM2/DSMX 2.4G miniature receiver features two operating modes: 4 channels in standard flight (PWM) mode; 7 channels in PPM mode.
Its four channel interfaces adopt 1.25mm 3P sockets, which are compatible with the wiring sequence of Pingzheng 1.25mm interface servos.
Although the manufacturer recommends an operating voltage of 5-12V, practical tests show it can also work normally with a 1S (3.7V) lithium battery.
However, the manufacturer notes that the so-called ultra-long range of 800-1000 meters cannot be achieved under this voltage condition; please make your own decision!
For binding (refer to plug identification and wiring sequence): Press and hold the binding button first, then power on the receiver. This operation is not very convenient.
Release the binding button only after the indicator light stays on (indicating successful binding).

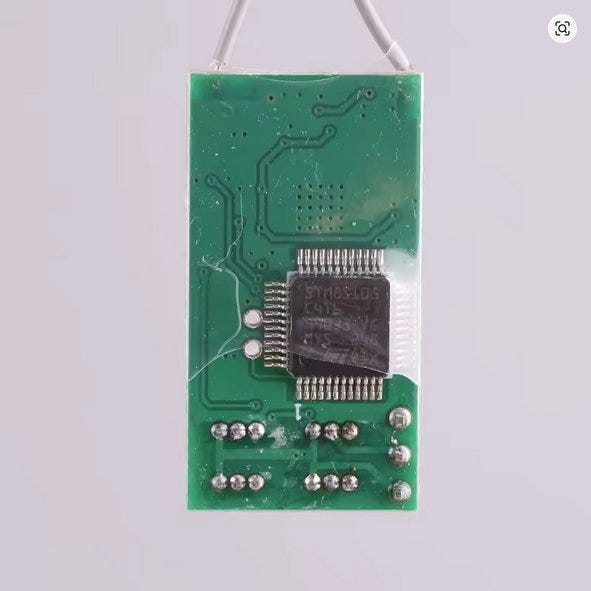

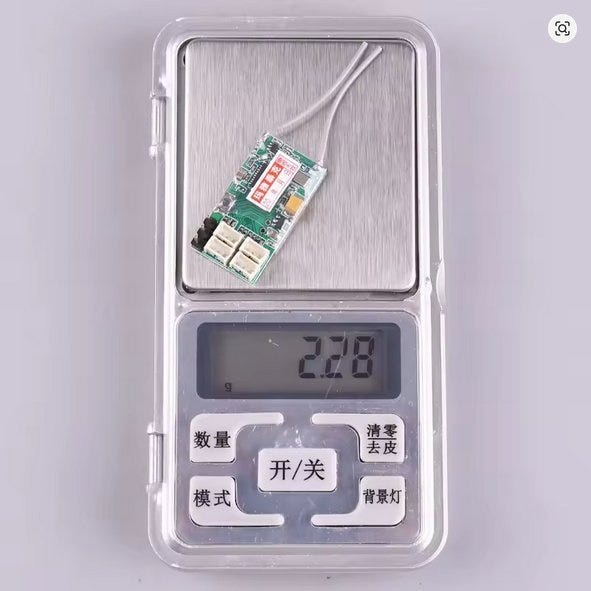

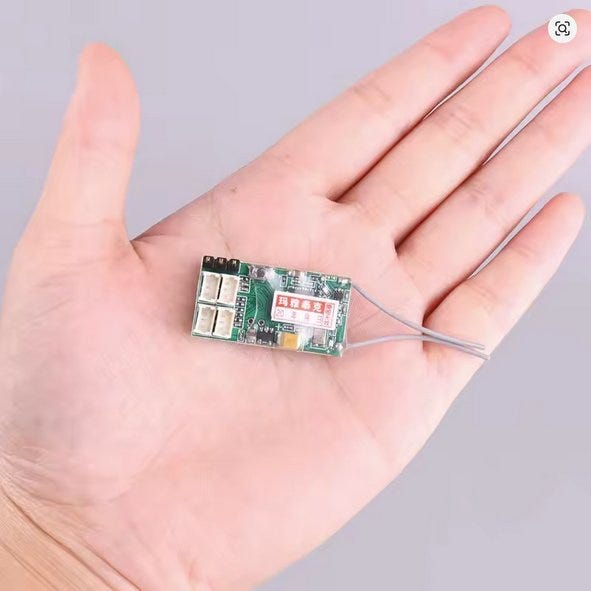

The receiver is compact in size but relatively heavy (nearly 2.5g) due to the thick circuit board used.
The manufacturer claims to use military-grade chip components; some sockets are slightly misaligned during soldering, but this does not affect normal use.
Suitable Models
Crossover aircraft
EPP aircraft
Drifting machine
GLD aircraft
Gliders
Hollow cup aircraft
Etc.
Product Specifications
Channel: 4 channels
Format: DSM-X (supports DSM2)
Frequency band: 2.4GHz

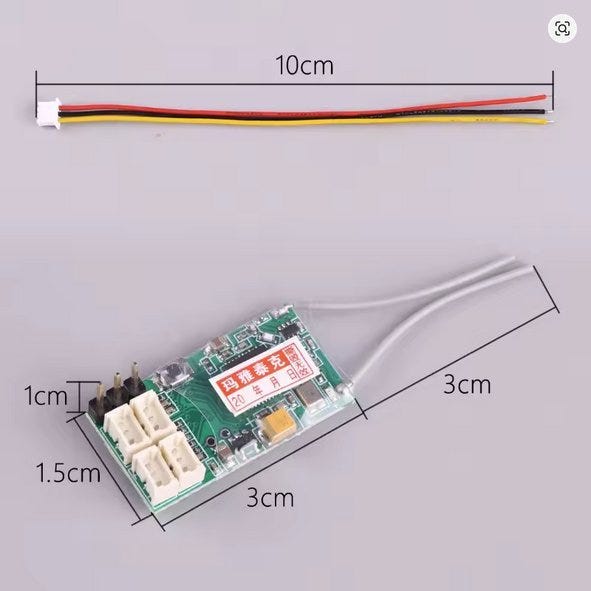

Size: 30mm × 15mm × 5mm
Weight: 2.29g
Working voltage: 5-12V
Antenna length: 30mm
Interface type: 1.25mm JST 3P
