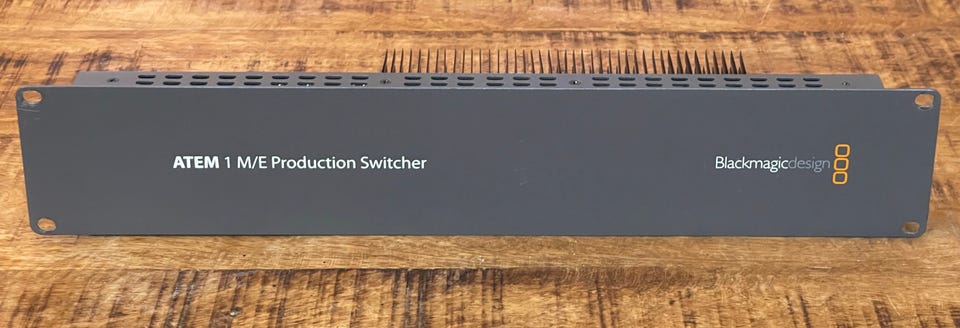

Blackmagic Design ATEM M/E 1 Production Switcher videomixer
Säljes
Kan skickas
3 000 kr
Frakt från 69 kr + köpskydd 180 kr
Trygga affärer med Frakt med köpskydd
Varan skickas till dig. Du har 24 timmar på dig att kontrollera varan innan pengarna överförs till säljaren.
Varubeskrivning
Skick: Okej skick - synligt använd
Typ: Övrig fotoutrustning
Blackmagic Design ATEM M/E 1 Production Switcher videomixer. Enheten är har både SDI- och HDMI-anslutningar. Bruksslitage 3000 kr.
Denna är designad för tex 1080 50i eller 720 50P och dessa har ej inbyggada scalers som modernare ATEM har.
ATEM M/E 1 Production Switcher
Video Inputs:
8x Total simultaneous
4x SDI 10-bit (HD/SD switchable)
4x HDMI 1.4a (10-bit HD/SD switchable)
1x Composite/S-Video/10-bit Component (component is HD/SD switchable)
Audio Inputs:
2-channel analog balanced XLR via breakout cable
Total Outputs: 14
Program Output:
1x SDI (10-bit HD/SD switchable)
1x HDMI 1.4a (10-bit HD/SD switchable)
1x Component (HD/SD switchable)
1x permanently downconverted Composite NTSC/PAL
1x downconverted 10-bit SDI
Preview (PVW) Output:
1x SDI 10-bit (HD/SD switchable)
Auxiliary Output: 3x SDI 10-bit (HD/SD switchable)
Computer Outputs: 1x USB 3.0 from Aux. 1 output. Media Express for Windows included
Quantity of Multi-Views: 1
Outputs per Multi-View: 1x HD-SDI, 1x HDMI
SDI Audio Output: 2 channels embedded into SDI output
Analog Audio Output: 2 channels balanced XLR via breakout cable
Ethernet: 1x 10/100/1000 BaseT input. Allows direct connection between control panel and chassis, or via network
Control Panel: ATEM Software Control Panel included free for Mac OS X and Windows.
Serial Communication: 1x RS-422 output
Tally Output: Added via Ethernet connection; GPI and Tally Interface product (not included)
GPI: Added via Ethernet connection; GPI and Tally Interface product (not included)
Software Update: Using USB connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility
Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address, which is set via the ATEM Switcher Utility connected via USB to chassis
Processing:
Color Space Conversion: Hardware-based, real-time
Processing Delay: 1 line
HD Down Conversion: Built-in, high-quality hardware downconverter always outputs to SD-SDI and composite outputs when working in HD video formats. Component output can be switched between HD or SD. Selectable between letterbox, anamorphic 16:9, and center-cut 4:3 styles.
Standards:
HD Format Support: 1080i50, 1080i59.94, 720p50, 720p59.94
SD Format Support: 625/25 PAL, 525/29.97 NTSC
SDI Compliance: SMPTE 259M, 292M
HDMI Resolutions: Input resolutions for computers: 720 x 480 59.94 Hz, 720 x 576 50 Hz, 1280 x 720 59.94/50 Hz, and 1920 x 1080 59.94/50 Hz
Video Sampling: 4:2:2
Color Precision: 10-bit
Color Space: 4:2:2 YUV
Media Player:
Quantity: 2
Channels: 2x for key and fill
Resize Clip Manually: 32 with fill and key
Clip Capacity: 2 with fill and key
Maximum Clip Length: 1080i: 180 frames
720p: 360 frames
NTSC/PAL: 900 frames
Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF
Video Format: QuickTime and AVI
Audio Format: WAV, MP3, AIFF
Multi-View Monitoring:
Number of Windows: 1 x 10
Routable Windows: 8
Tally: Red for program and green for preview indication
Window Source Labels: Yes
Extras:
Keyers: 7x Total, 4x Upstream, 2x Downstream 7x Linear/Luma, 4x Chroma, 1x Transition (Stinger/DVE)
Generators: 5x Pattern, 2x Color
DVE: 1x DVE with 3D borders & drop shadow
Obs: Knappen för att visa hela beskrivningen har bara en visuell effekt.
