Dynacord CL 1600 effektförstärkare svart
Säljes
Kan skickas
5 000 kr
Frakt från 99 kr + köpskydd 201 kr
Trygga affärer med Frakt med köpskydd
Varan skickas till dig. Du har 24 timmar på dig att kontrollera varan innan pengarna överförs till säljaren.
Varubeskrivning

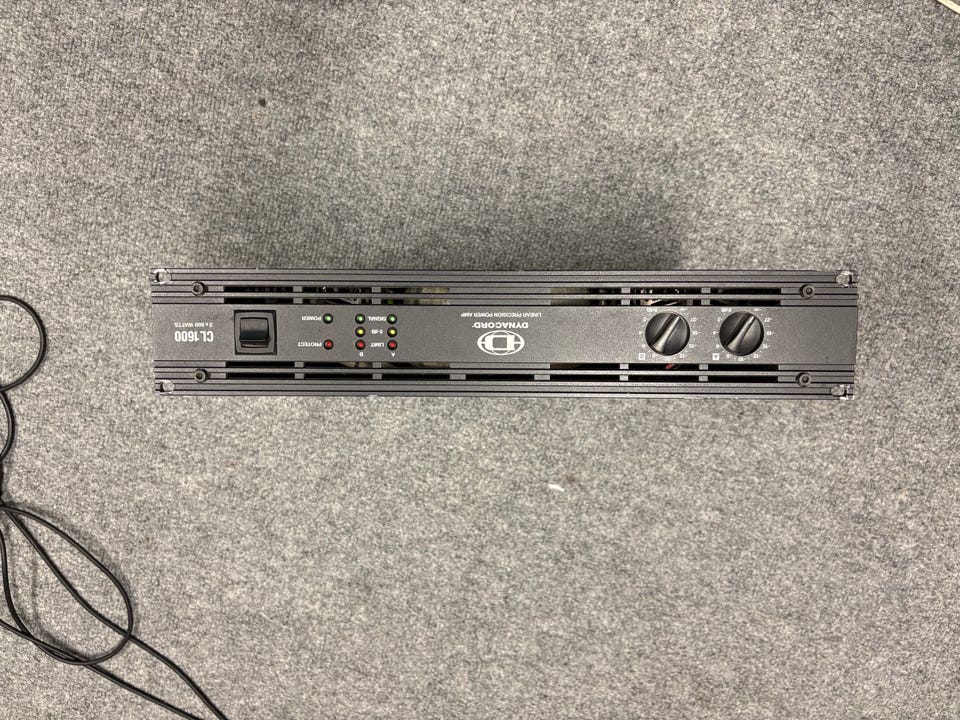

Skick: Bra skick - varsamt använd

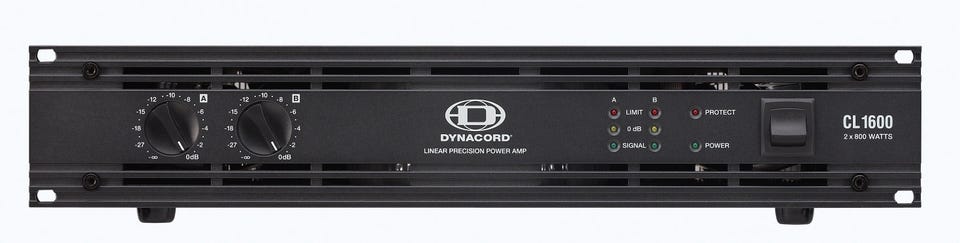

Dynacord CL 1600 premium PA slutsteg.
Kan driva även 2 Ohm laster bryggat till 2200W.
Outstanding audio performance
Class H technology for high efficiency and less heat
DYNACORD protection package for maximum reliability
Connectivity optimized for mobile applications
The Compact Linear Precision Series power amplifiers combine outstanding audio performance with maximum reliability and operating security as well as being markedly lighter than equivalent power amplifiers.
Through the use of an optimized power supply with low dispersion toroidal transformers as well as of Class H technology (CL 800 Class AB) a large amount of headroom above the specified nominal output has been achieved along with a considerable reduction in weight and thermal leakage.
CL Series power amplifiers satisfy all the criteria for punishing ‘on the road’ use. They are reliably protected against overheating, overload and short‑circuits as well as high frequency and DC at the output. The ‘soft start’ function employs relays to insert a delay between switching on the device and the activation of the power outputs. A further circuit limits the current on power‑up, there‑by protecting the mains fuses. Dynacord amplifiers constantly monitor the input‑ versus the outputsignal by means of super‑fast audio processors which send ‑in case of non‑linear operation‑ control parameters to the limiters. The limiters are thus operating dynamically and do not affect the amplifiers dynamic capabilities as they control the input gain level. Thermal stability is provided by a 3‑stage fan with a very low noise level.

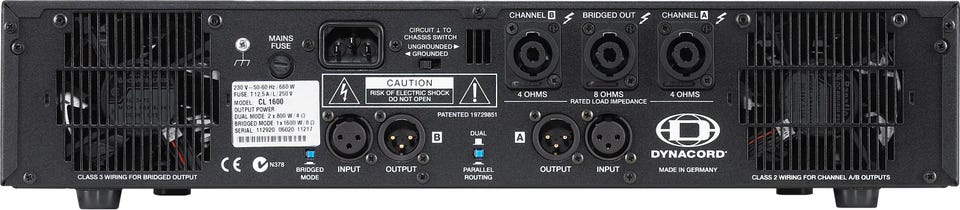

The inputs are electronically balanced and implemented on XLR connectors, whilst Direct Outs for looping the signal are also standard. Input routing permits the choice between Mono and Stereo modes. Mono bridged mode is also easy to realize thanks to the separate Bridged Out connectors and the Bridged Mode switch.
SPECIFICATIONS
Load Impedance 2 Ω 4 Ω 8 Ω
Max. Midband Output Power THD = 1%, 1kHz , Dual Channel 1100W 800W 500W
Rated Output Power THD < 0,1%, 20Hz … 20kHz 700W 350W
Max. Single Channel Output Power Dynamic Headroom, IHF-A 2200W 1200W 625W
Max. Single Channel Output Power Continuous, 1kHz 1500W 950W 550W
Max. Bridged Output Power THD = 1%, 1kHz
