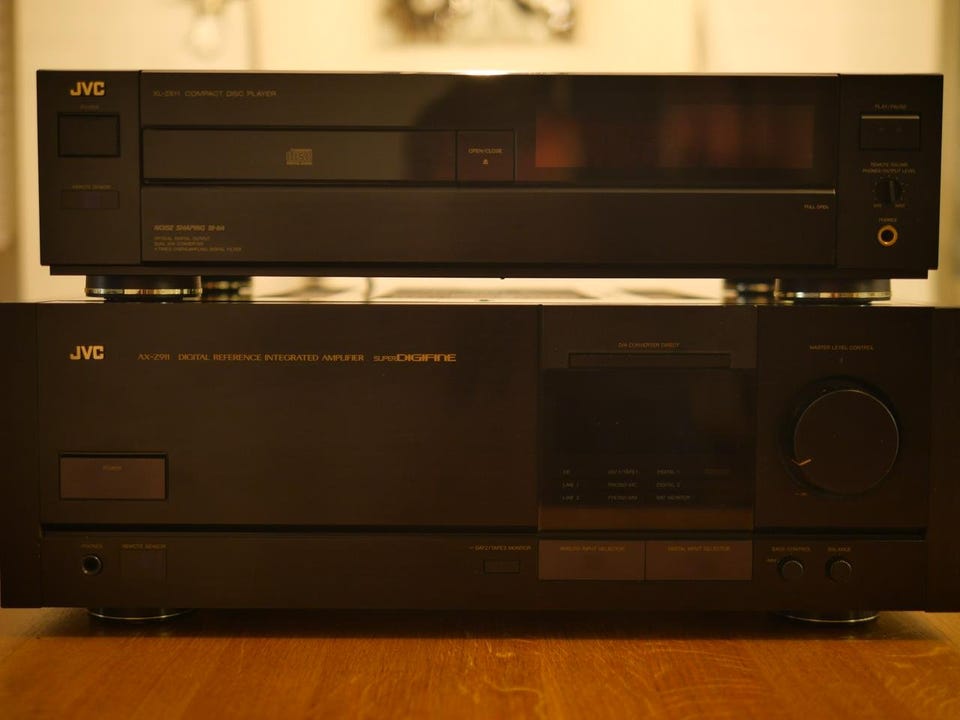

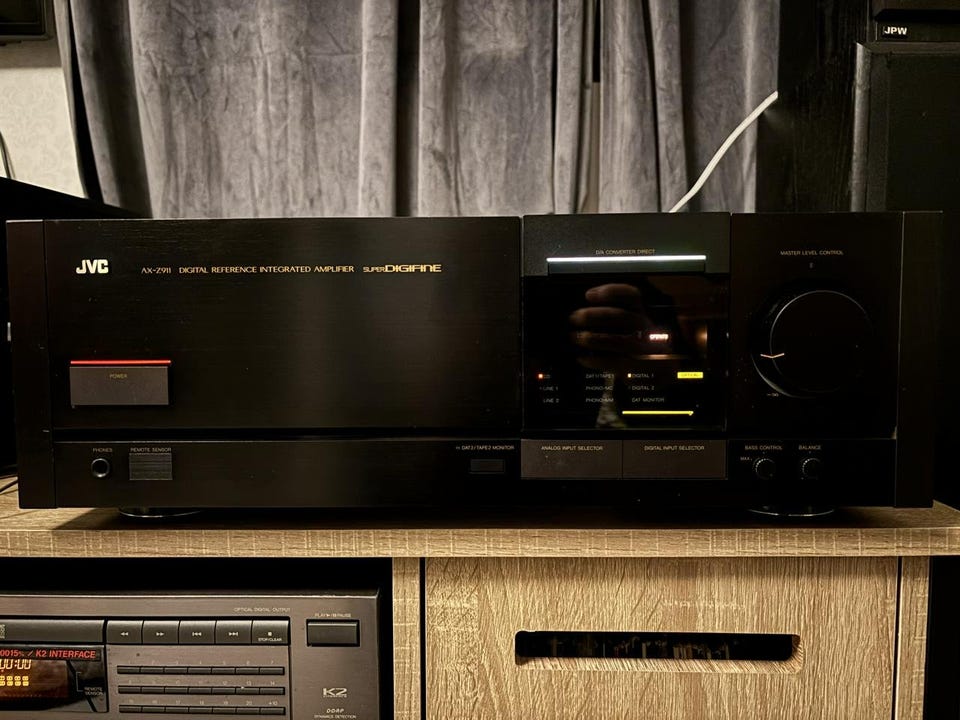

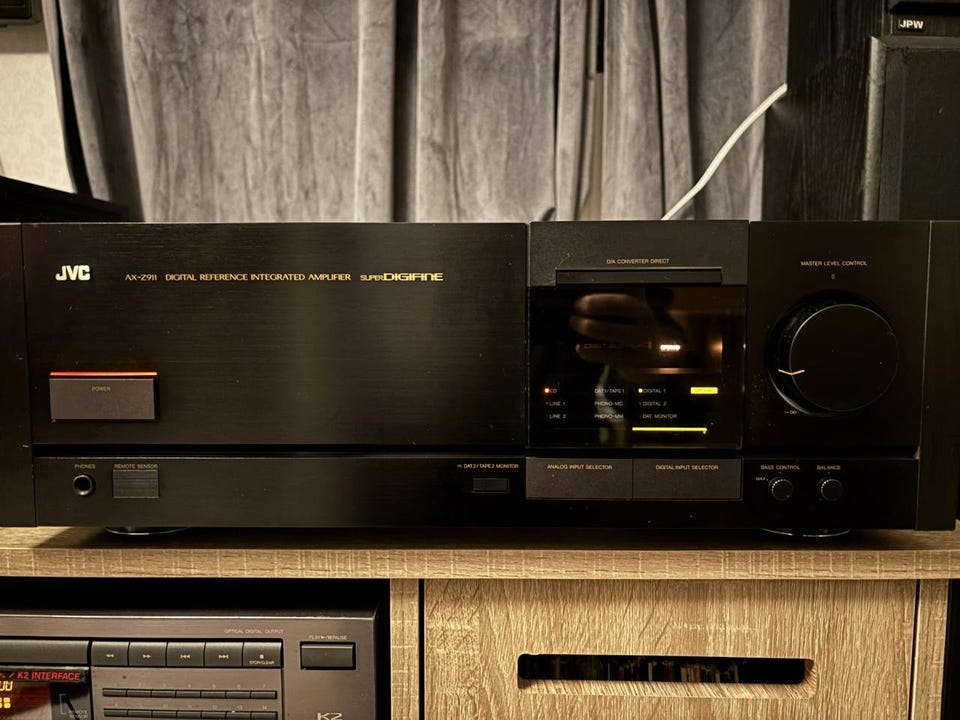

Förstärkare JVC AX-Z911
Säljes
4 000 kr
Be säljaren att skicka med Frakt med köpskydd! Det är säkert, snabbt och du får varan hem till dig. Läs mer
Varubeskrivning
Skick: Bra skick - varsamt använd
Varumärke: JVC
Digital reference Integrated amplifier SuperDIGIFINE.
En av JVCs allra bästa förstärkare någonsin. Välbyggd och välljudande monster. Har både en digital optisk ingång och två coax ingångar. Inbyggd DAC med K2 chip. Mycket bra pre-amp för MM och MC.
Allt fungerar men display som kan lyser K2 har slocknat men alla andra dioder för val och knappar fungerar.

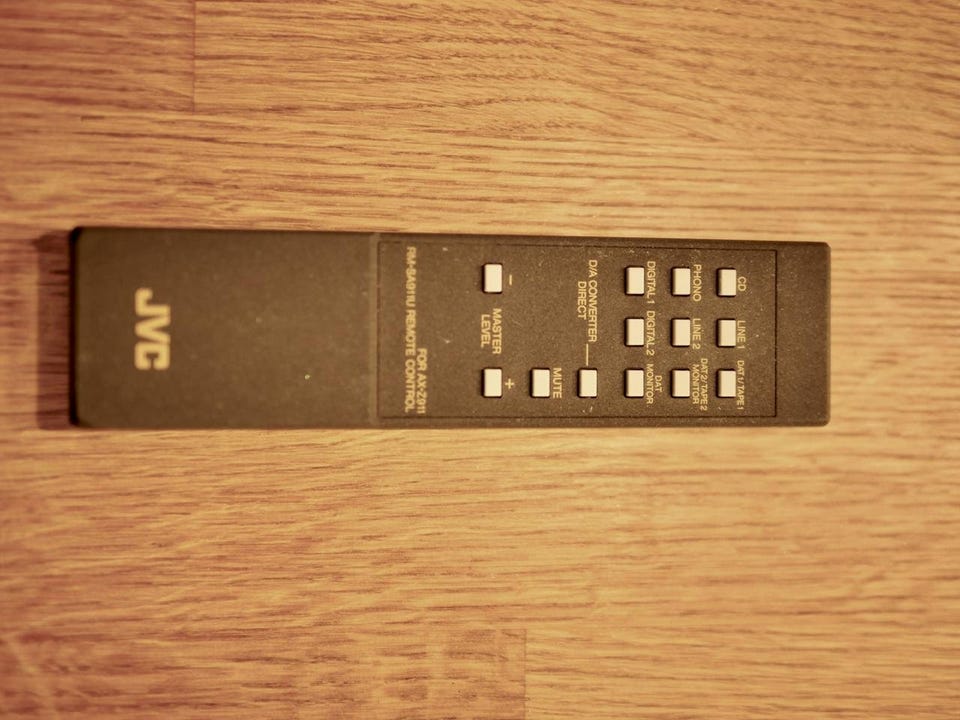

Original fjärrkontroll ingår.
K2
The JVC K2 chip is a proprietary sound processing technology developed by JVCKENWOOD that restores and enhances the quality of digital audio. It works by recreating lost high-frequency overtones and expanding the bit rate and frequency range, bringing sound closer to the original master quality.
Power output: 100 watts per channel into 8Ω (stereo)
Frequency response: 1Hz to 200kHz
Total harmonic distortion: 0.003%
Damping factor: 200

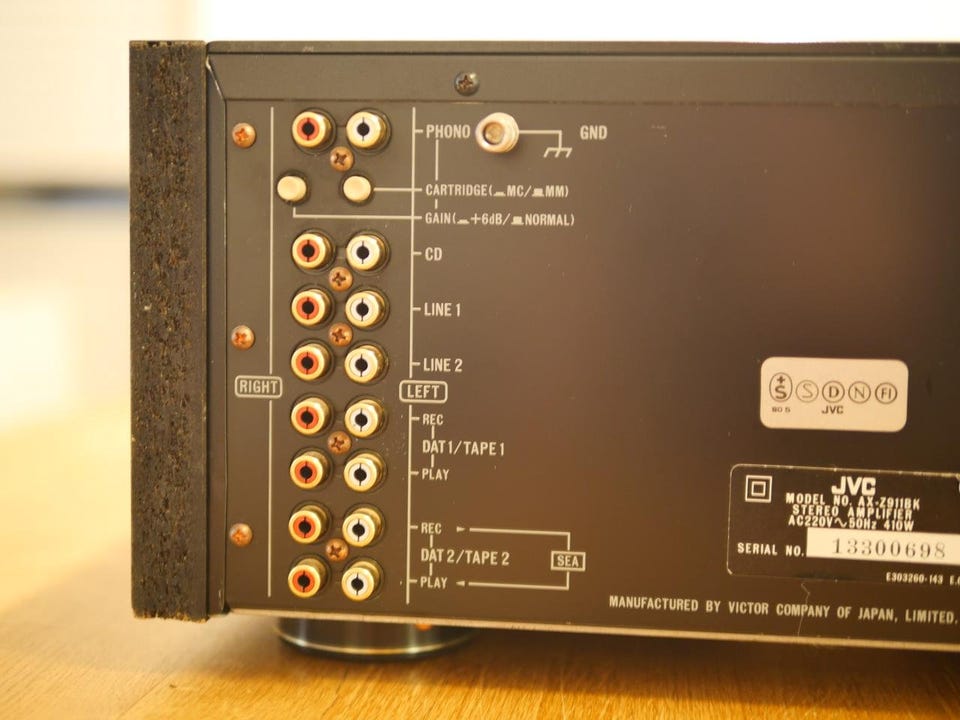

Input sensitivity: 0.2mV (MC), 2.5mV (MM), 400mV (line)
Signal to noise ratio: 74dB (MC), 90dB (MM), 112dB (line)
Output: 400mV (line)

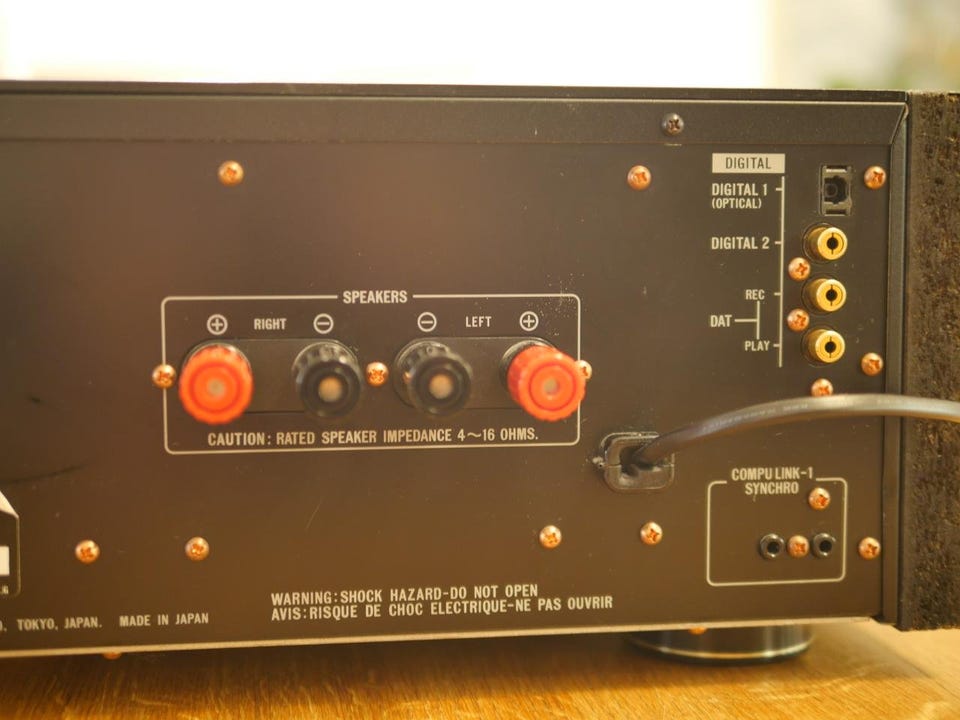

Digital inputs: optical, coaxial
Dimensions: 475 x 166 x 442mm
Weight: 20kg
Finish: black
Year: 1988
Pre-main amplifier equipped with digital pure A circuit.
In addition to the built-in D/A converter, we focus on the pure A-class operation of the amplifier and realize the pure A-class operation in order to review the fundamental quality so that it can be applied to digital sources.
Pure A-class operation does not perform signal synthesis like B-class operation, so switching distortion and crossover distortion do not occur in principle. However, pure A-class operation requires a huge power supply because the output current required for full-power operation is always kept constant. Moreover, heat generation is high and efficiency is low.
In order to solve these problems, the AX-Z911 is equipped with a digital pure A signal prediction circuit that quickly judges the magnitude of the input digital signal and supplies the corresponding power supply voltage to the amplifier only when necessary. This enables high-efficiency pure A-class operation without wasting power.
The D/A converter section uses a digital filter with 4 x oversampling.
The transmission lines in the circuit are completely short and the contact points are reduced. Relay and electronic switch are used to suppress the routing of the input signal, and only one speaker terminal is used.
In addition, if the DAC direct switch is turned on until the digital signal is just before the D/A converter, the wiring length becomes only 0.5m and the number of contacts becomes only one. We are trying to simplify the circuit as much as possible.
When an analog source is played back, the digital clock operation is automatically stopped to suppress the influence of digital noise.
